SIZE RANGE
20mm,30mm,40mm
50mm,70mm,80mm
90mm,120mm

VOLTAGE
5V, 12V, 24V, 48V
110V，220V，230V

OPERATING
TEMPERATURE
-30℃ ~ 70℃

SPEED
2000 rpm to 20,000 rpm

SERVICE LIFE
30,000 – 70,000 hours

OPTIONAL FUNCTIONS
30,000 – 70,000 hours

16 +

Years Expertise
Thermal Solutions
Development

m²

Smart Facility
Automated
Production Base

9 +

Global
Certifications
ISO/UL/CE/ROHS Compliant

1M+

Years Expertise
Thermal Solutions
Development

Precision Cooling Solutions
Engineered for Global Industries
Since 2010, Ailand has pioneered intelligent thermal management systems from our Shenzhen headquarters. Our 5,000m² Huizhou smart factory integrates:

✓ 16 automated production lines
✓ 50+ precision testing instruments

✓ UL-certified R&D laboratory
✓ Custom mold development center

30% Faster Time-to-Market

0.01% Defect Rate

Request Custom Solution Proposal →

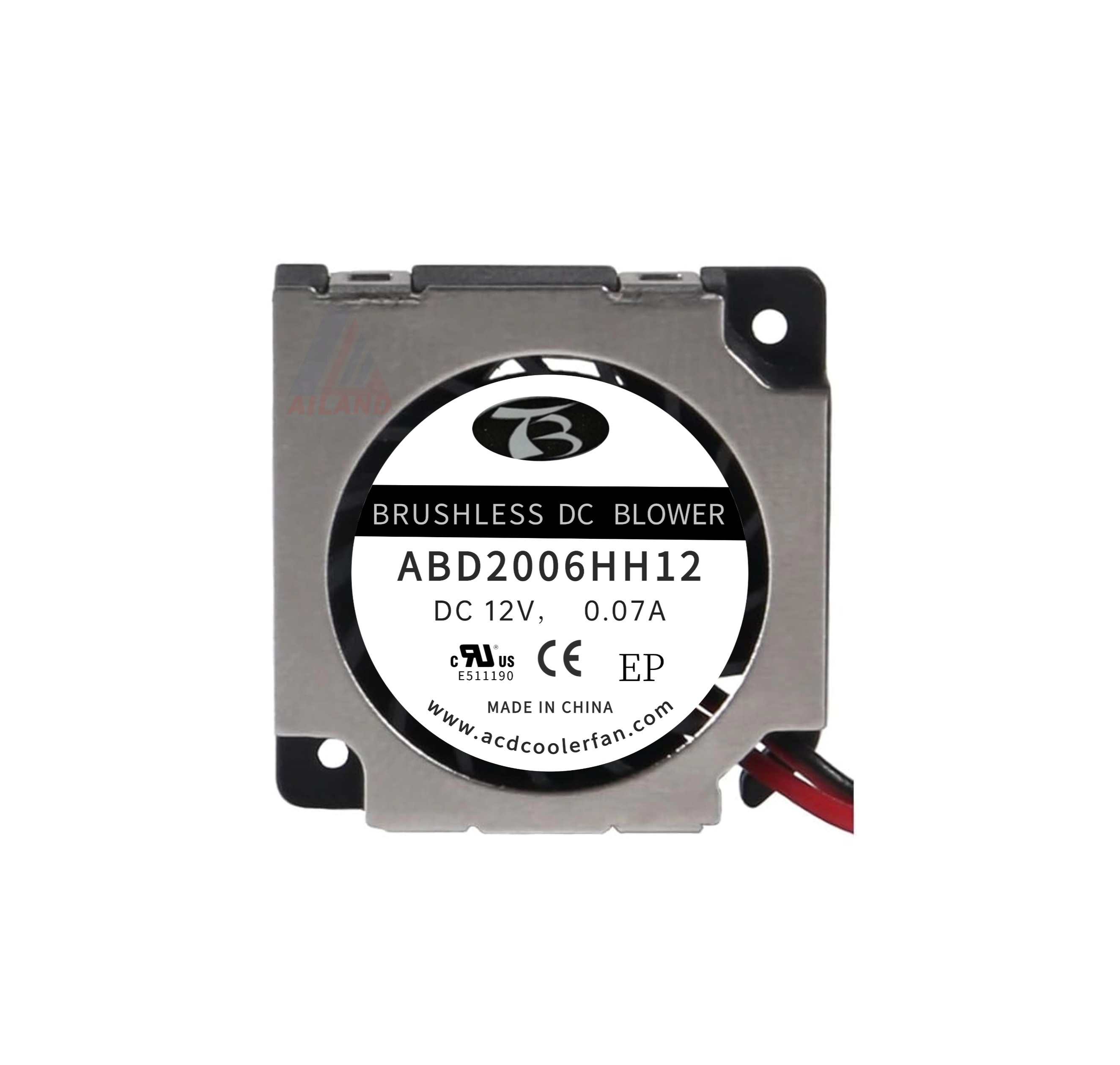

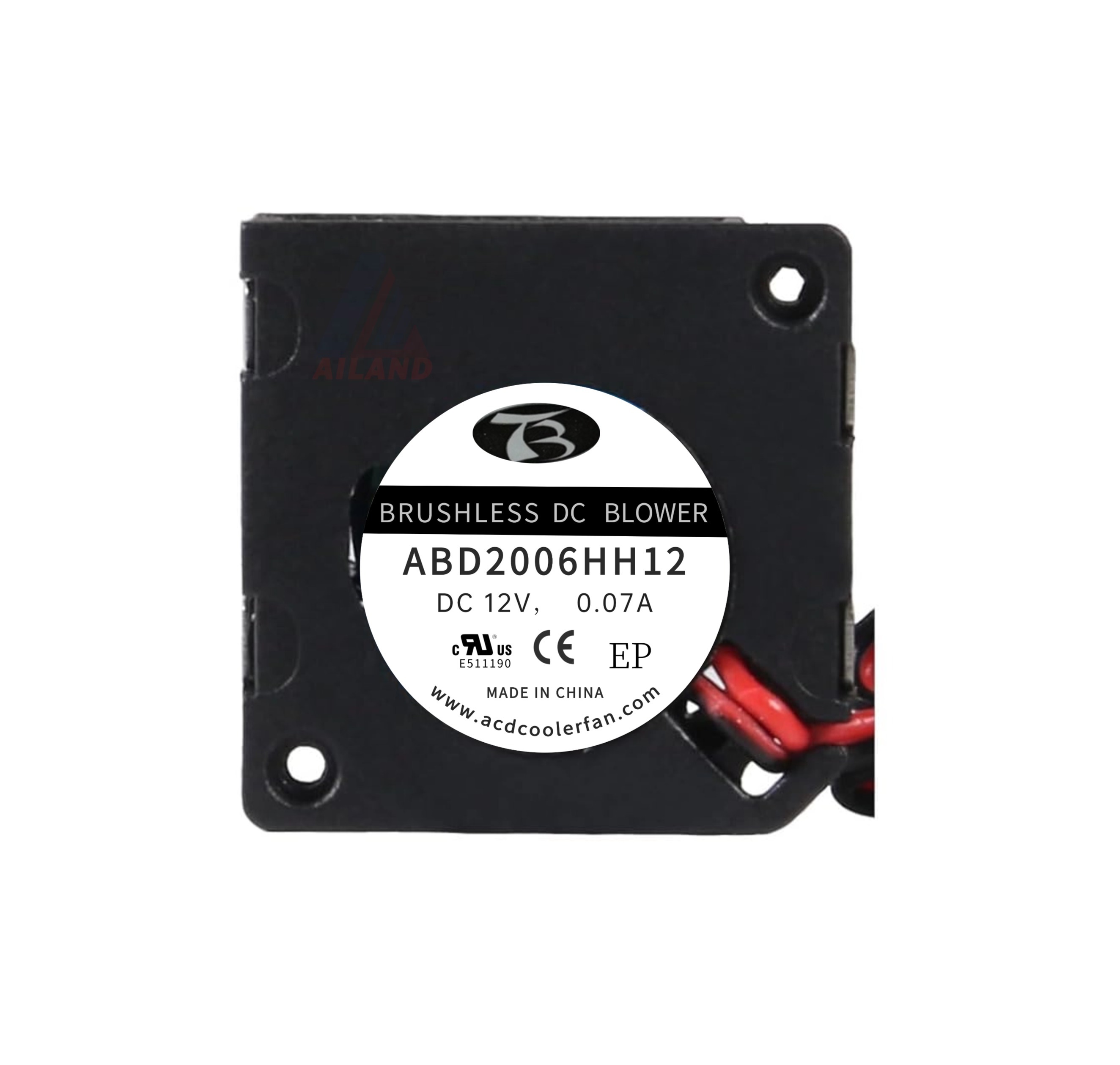

🔥HOT SALE BL2006
Blower Fan 20mm*06mm Minni Fan For (UAV) / Drone

40% Airflow Boost

<25dB Ultra-Quiet

70K Hours Lifespan

Get Custom Quote UAV & Host System Configurations >

Ailand Premium DC Cooling Solutions

Select from our engineered brushless fan series

Supply Chain Cost Analysis →

DC Axial Fan Series DC Blower Fan Series AC Axial Fan Series

Model	Size (mm)	Voltage (VDC)	Current (A)	Speed (RPM)	Airflow (CFM)

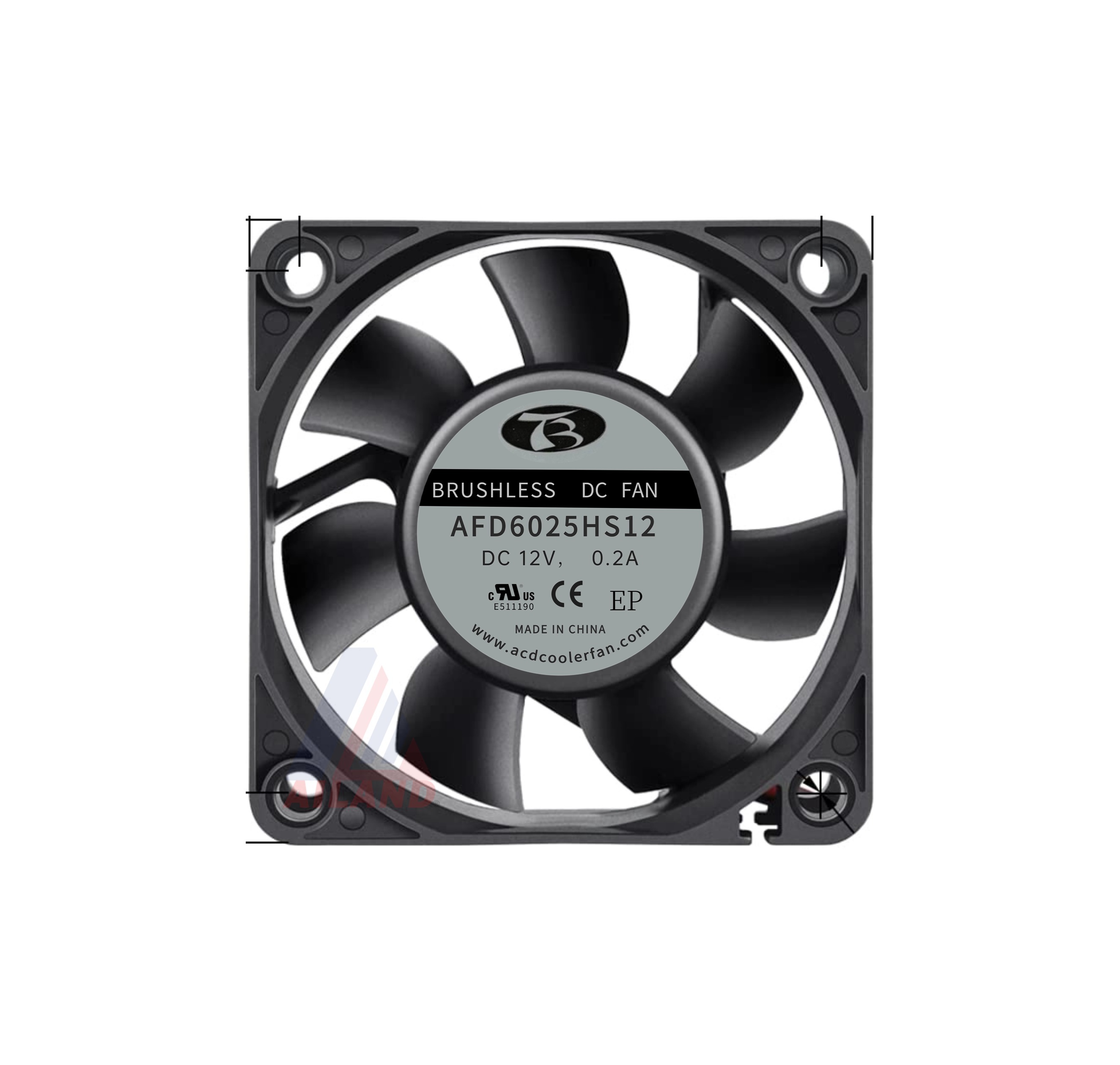

DC-6025	60x60x25mm	12V/24V/48V	0.08/0.18/0.5	5000/6000	23.48/30.55
DC-7025	70x70x25mm	12V/24V/48V	0.07/0.12/0.55	3500/4000/5000	31.75/37.87/45.21
DC-9238	92x92x38mm	12V/24V/48v	0.3/0.73/1.5	5500/7000	124.60

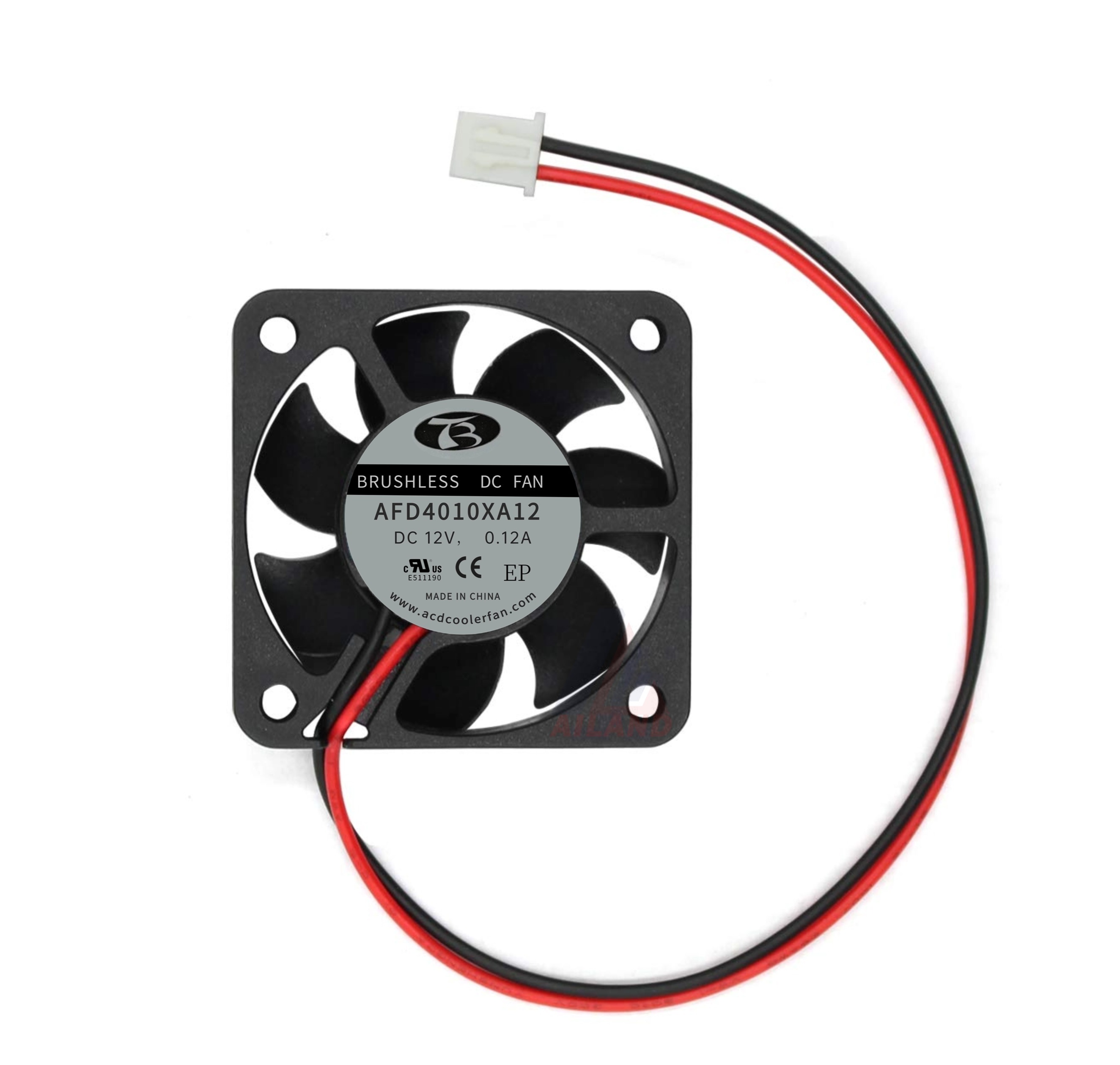

DC-4010	40x40x10mm	5V/12V/24V	0.07/0.12/0.22	7000	10.17

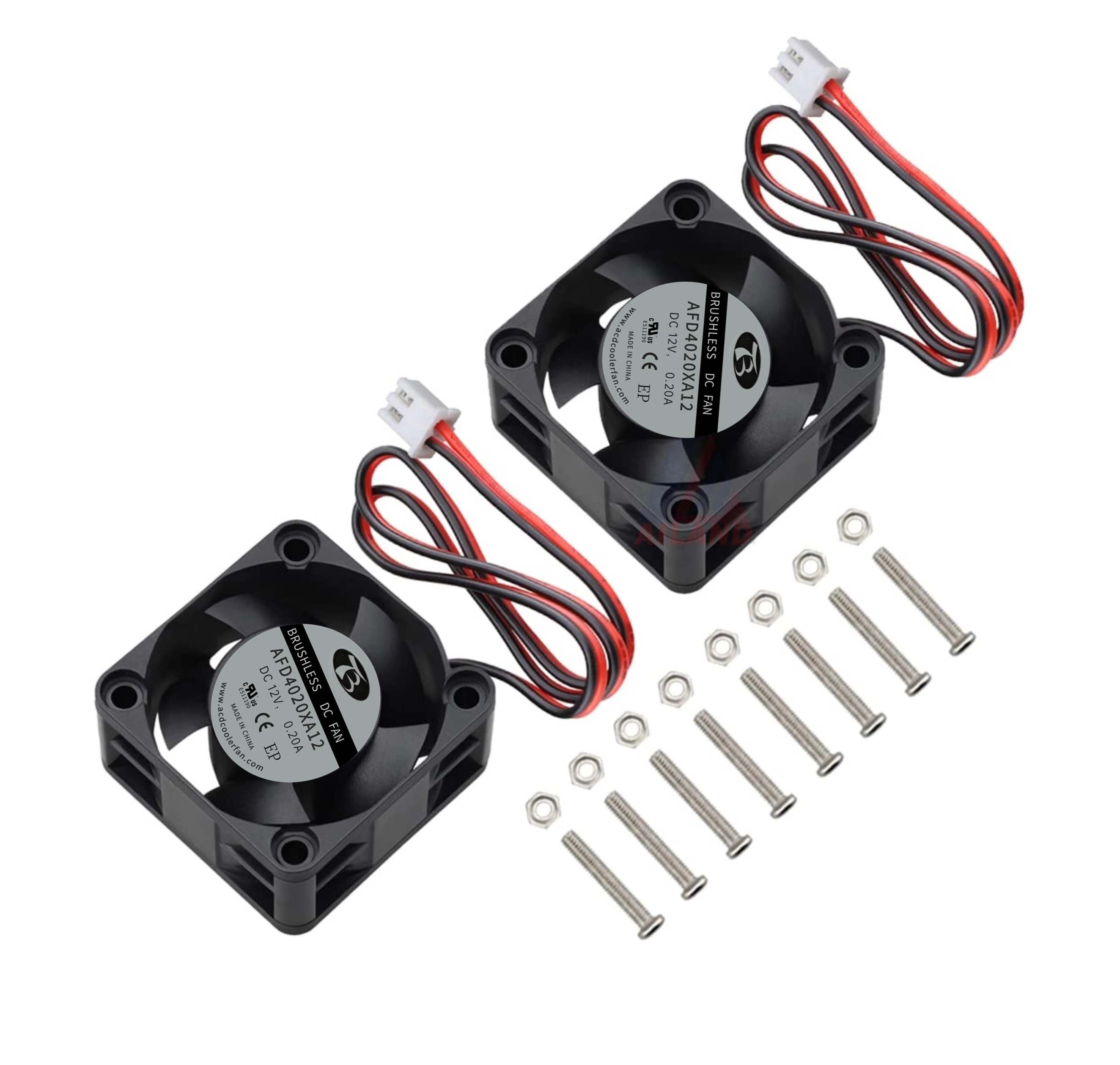

DC-4020	40x40x20mm	5V/12V/24V	0.06/0.08/0.16	6200	7.53

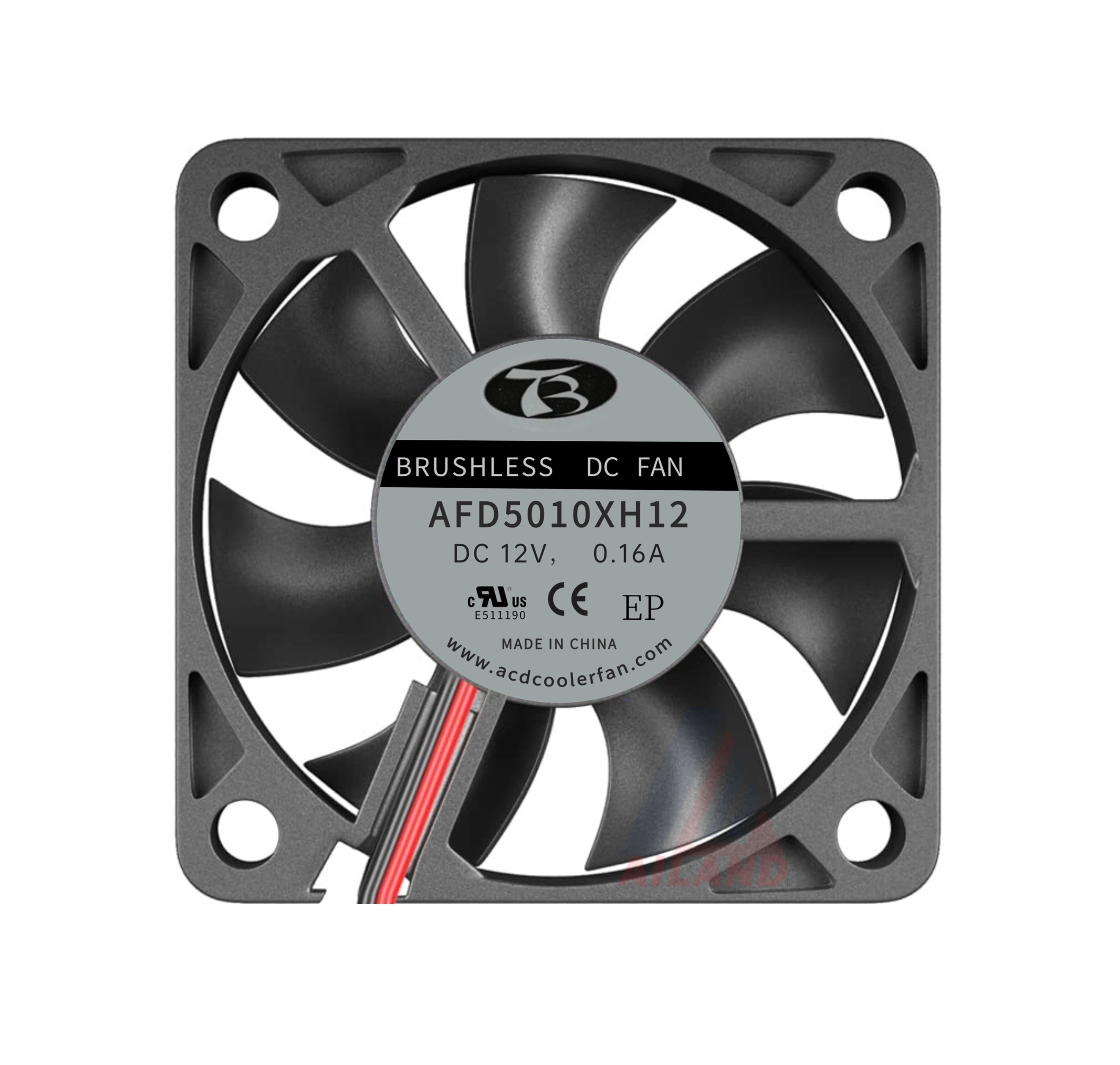

DC-5010	50x50x10mm	5V/12V/24V	0.10/0.16/0.30	6000	14.46
DC-8025	80x80x25mm	5V/12V/24V	0.35/0.55/0.56	3500/5000	52.07/73.57

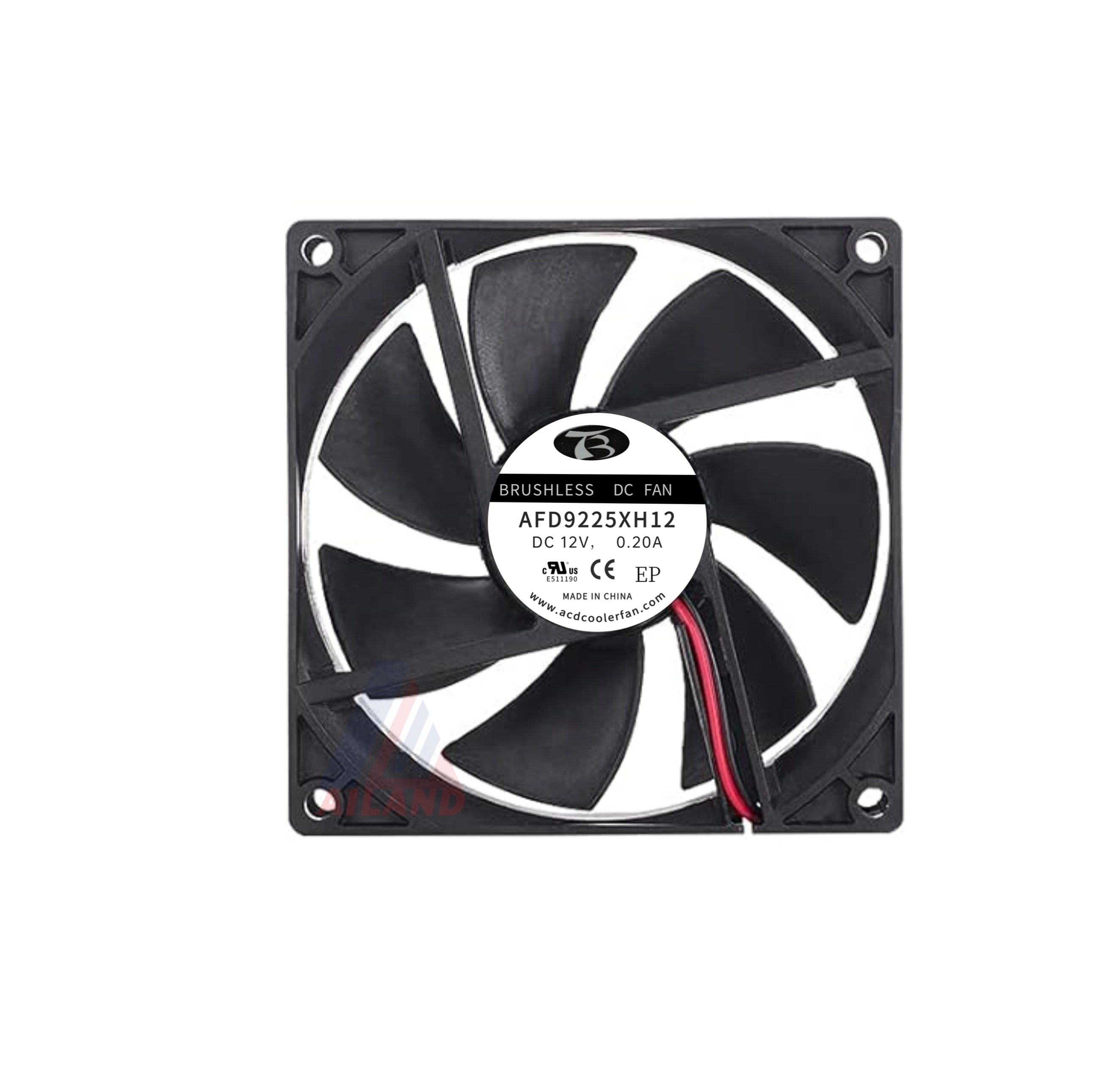

DC-9225	92x92x25mm	12V/24V/48V	0.08/0.2/0.6	2800/5000	57.14/115.40

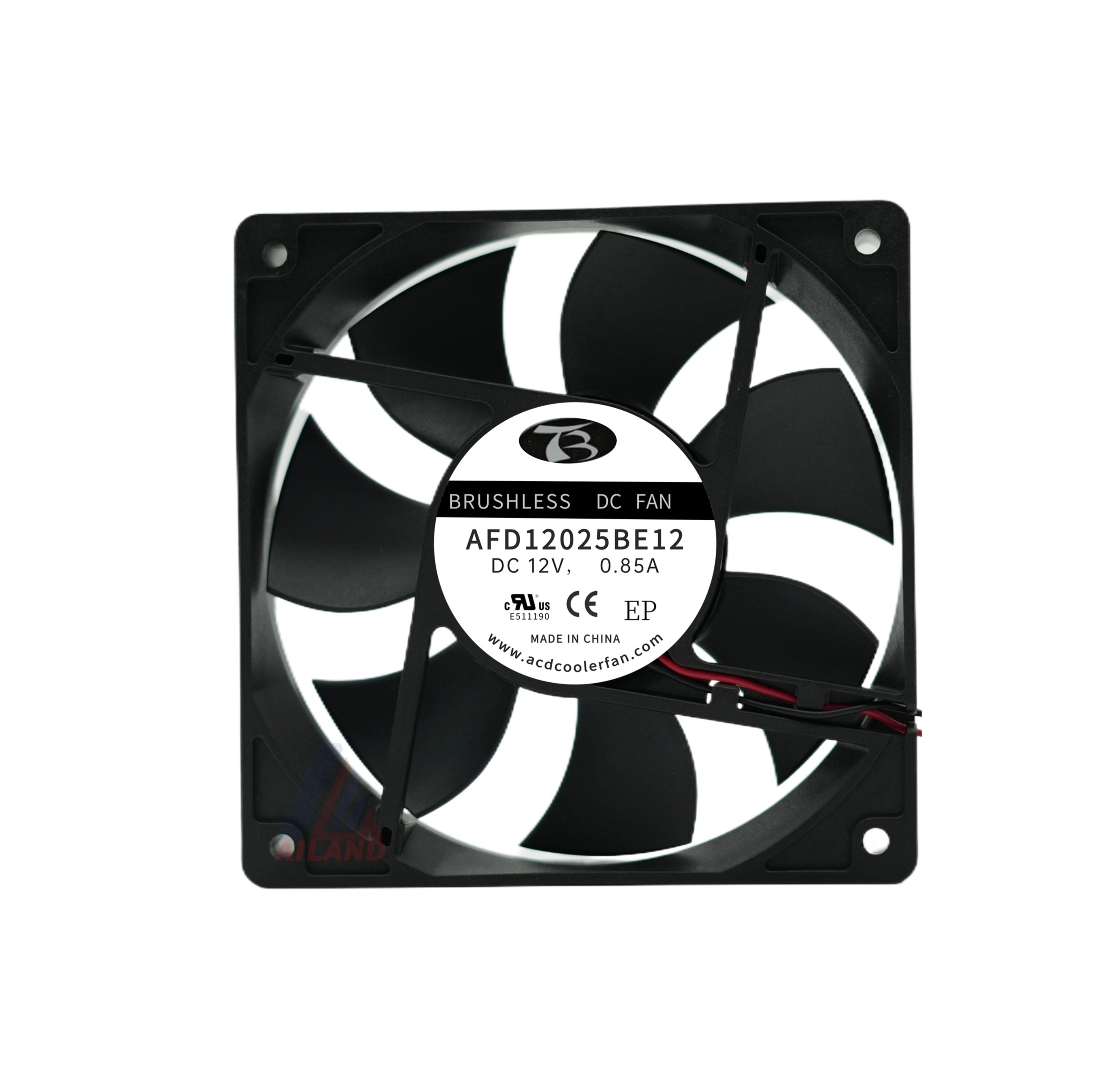

DC-12025	120x120x25mm	12V/24V/48V	0.52/1.00/2.00	4500	173.30

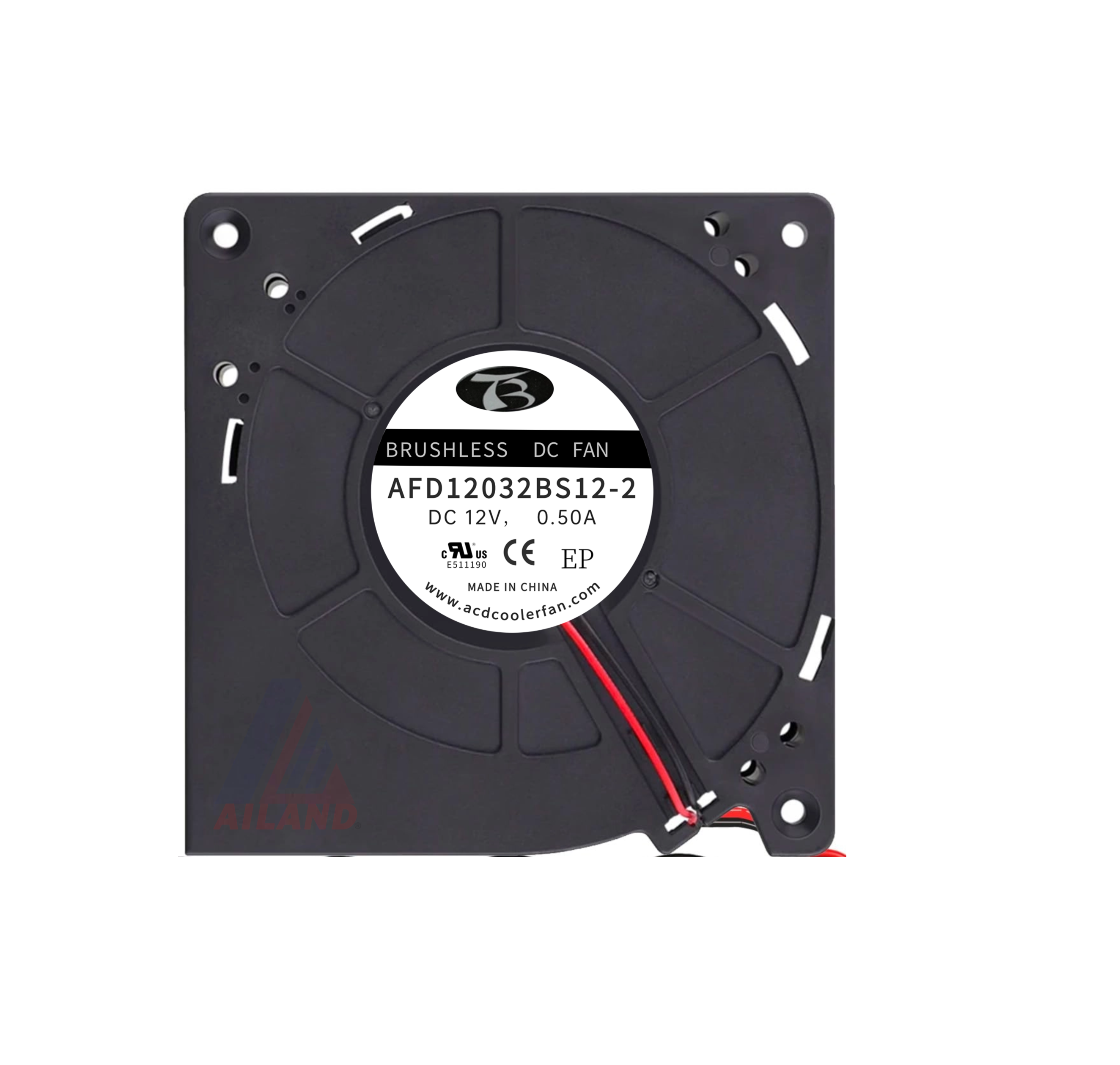

DC-12032	120x120x32mm	12V/24V/48V	0.60/1.50/2.00	3500	158.22

Model	Size (mm)	Voltage (VDC)	Current (A)	Speed (RPM)	Airflow (CFM)
BL-2005	20x20x05mm	5V	0.16	12000	0.50
BL-2006	20x20x06mm	5V	0.16	15000	0.36
BL-2006	20x20x06mm	5V	0.12	10000	0.25

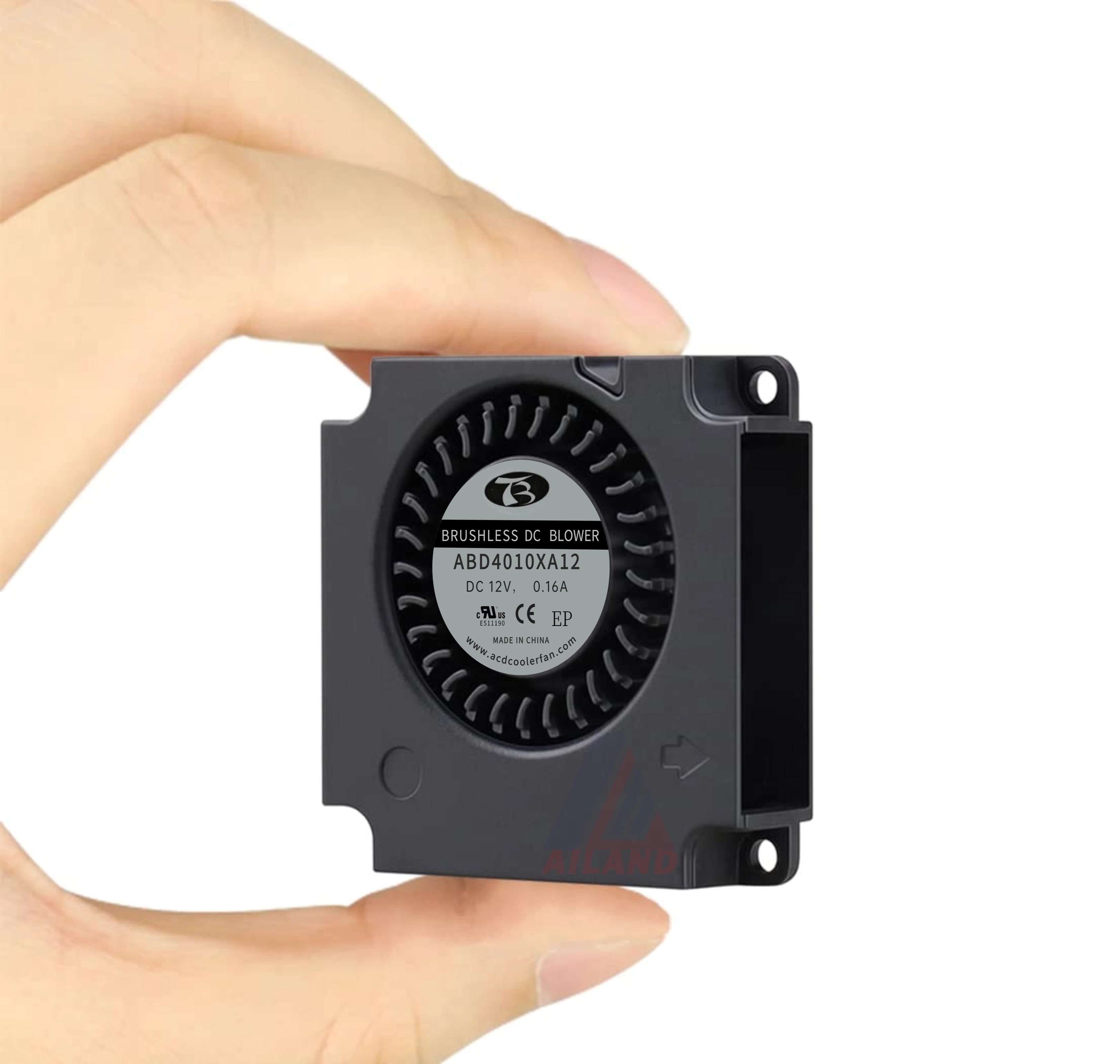

BL-4010	40x40x10mm	5V	0.17	7000	2.45
BL-4010	40x40x10mm	12V	0.10	7000	2.45

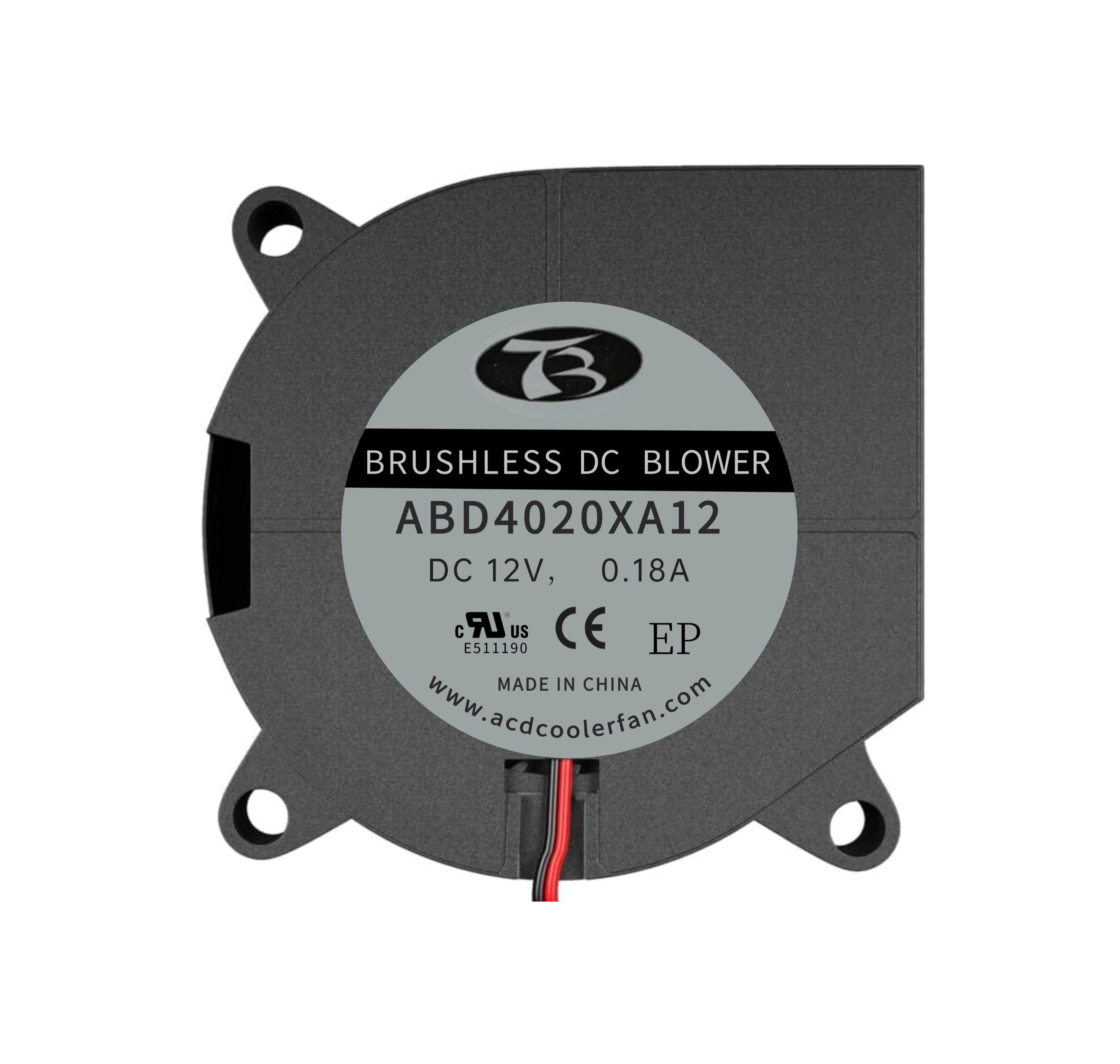

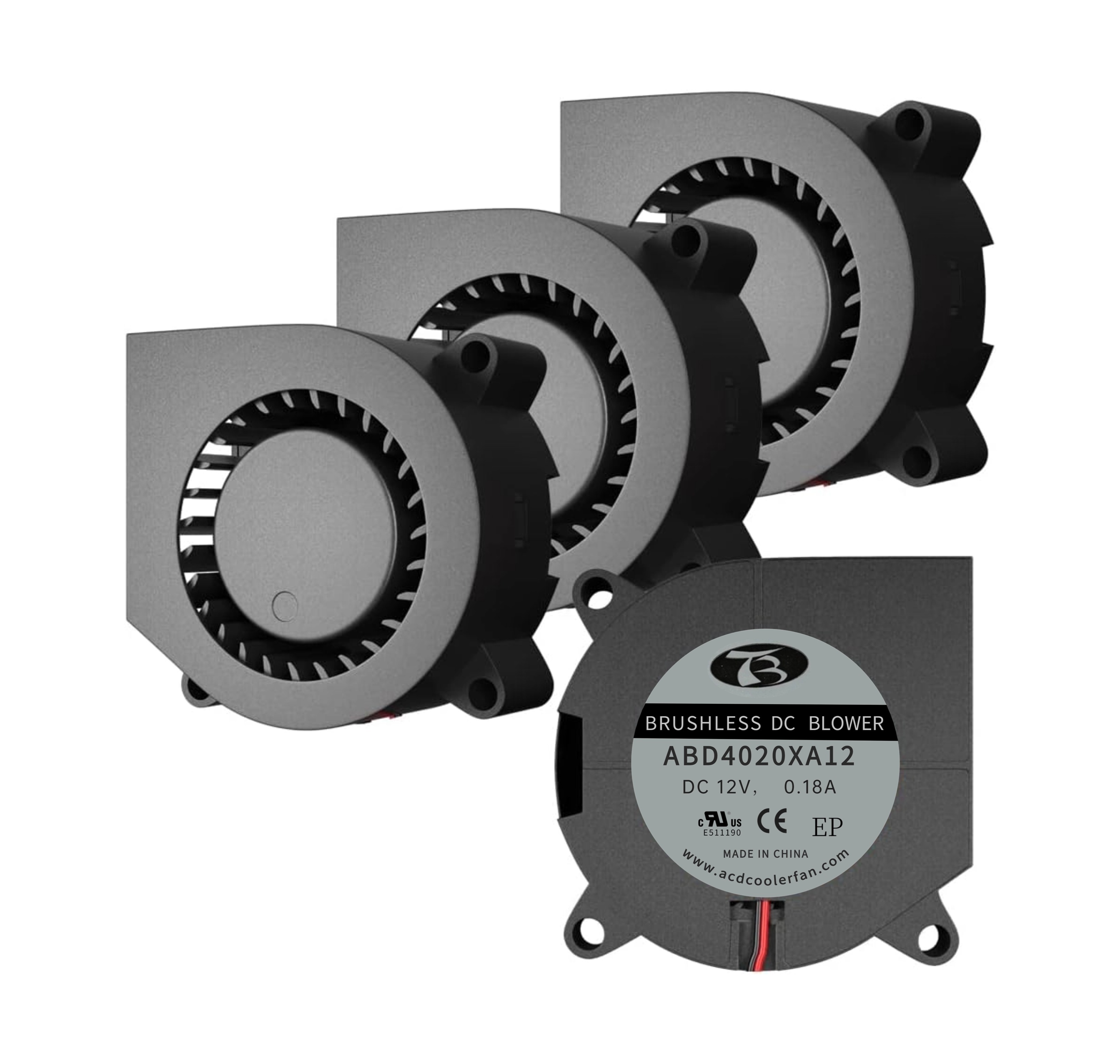

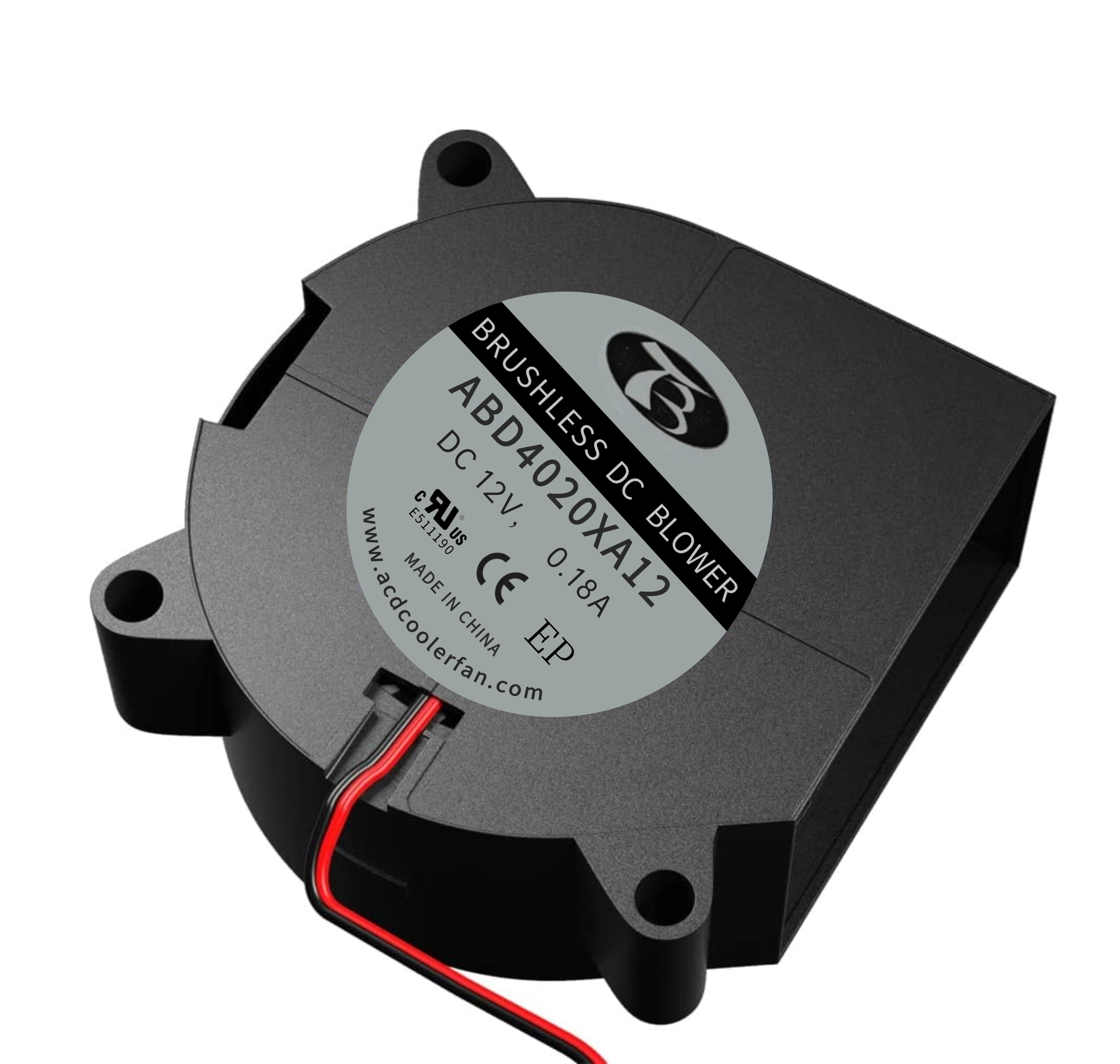

BL-4020	40x40x20mm	12V	0.18	6000	2.78
BL-4020	40x40x20mm	24V	0.14	6000	2.78
BL-4020	40x40x20mm	5V	0.23	5500	2.51

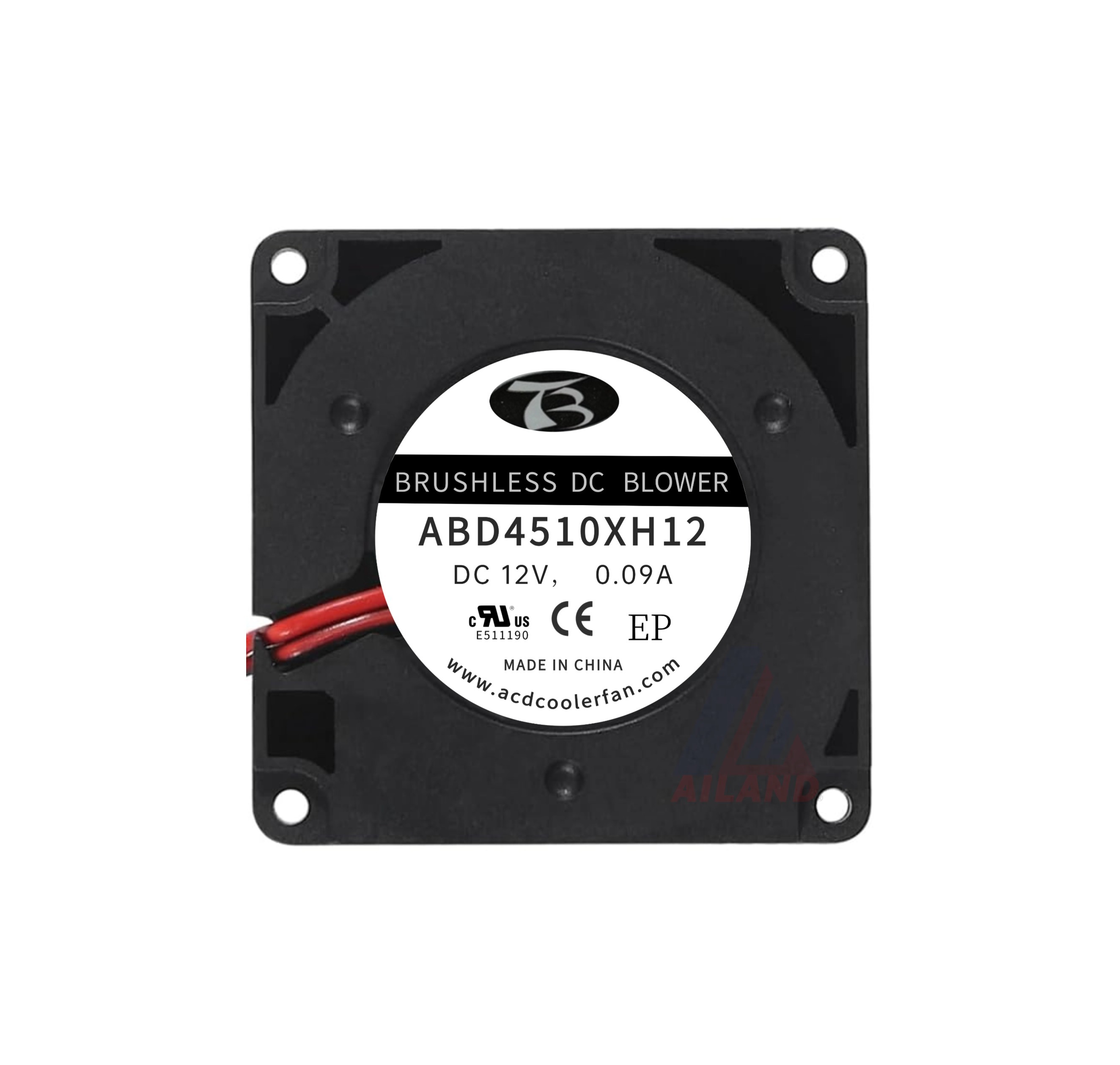

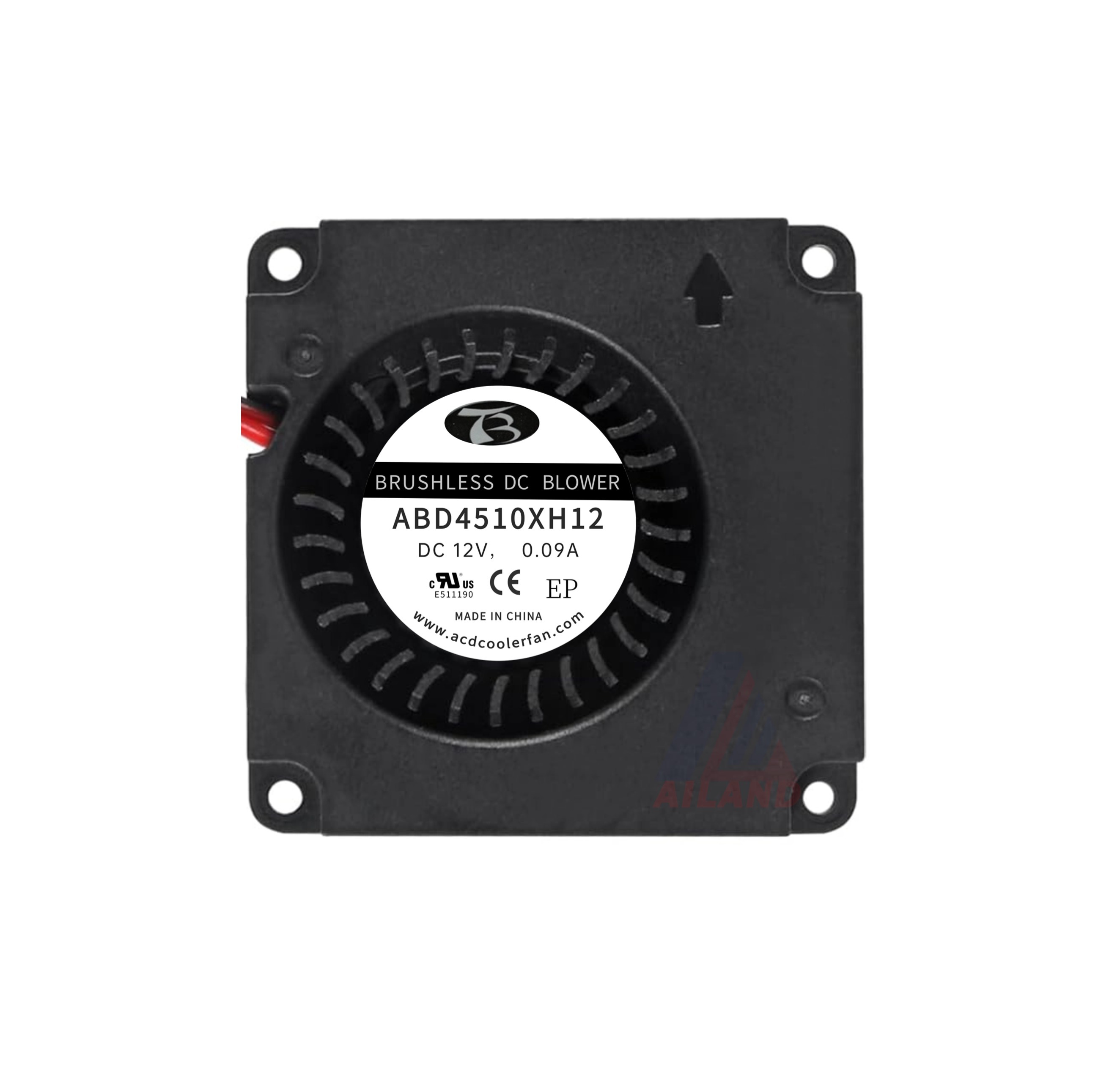

BL-4510	45x45x10mm	12V	0.14	5000	3.28
BL-4510	45x45x10mm	5V	0.17	4500	2.75

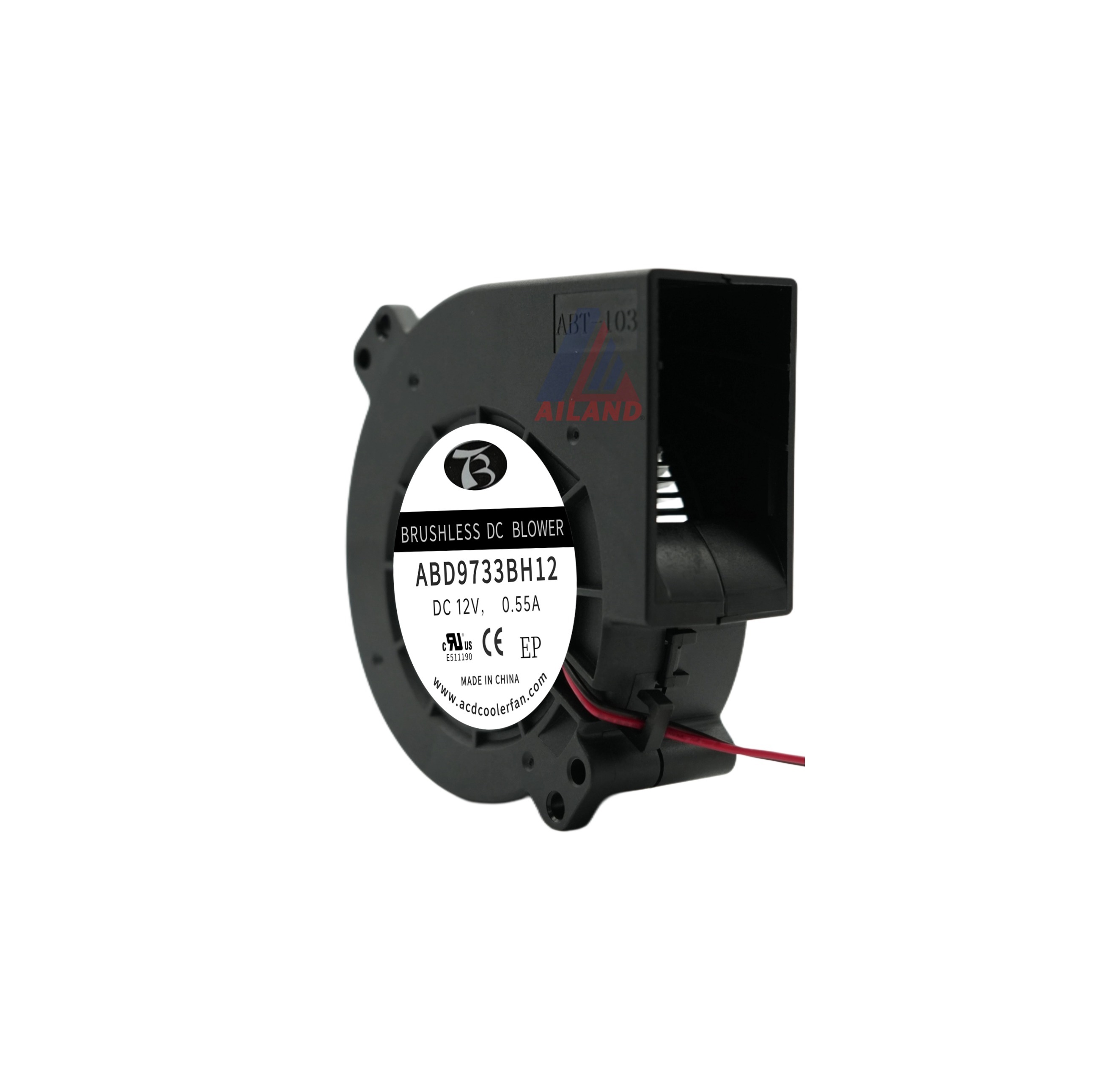

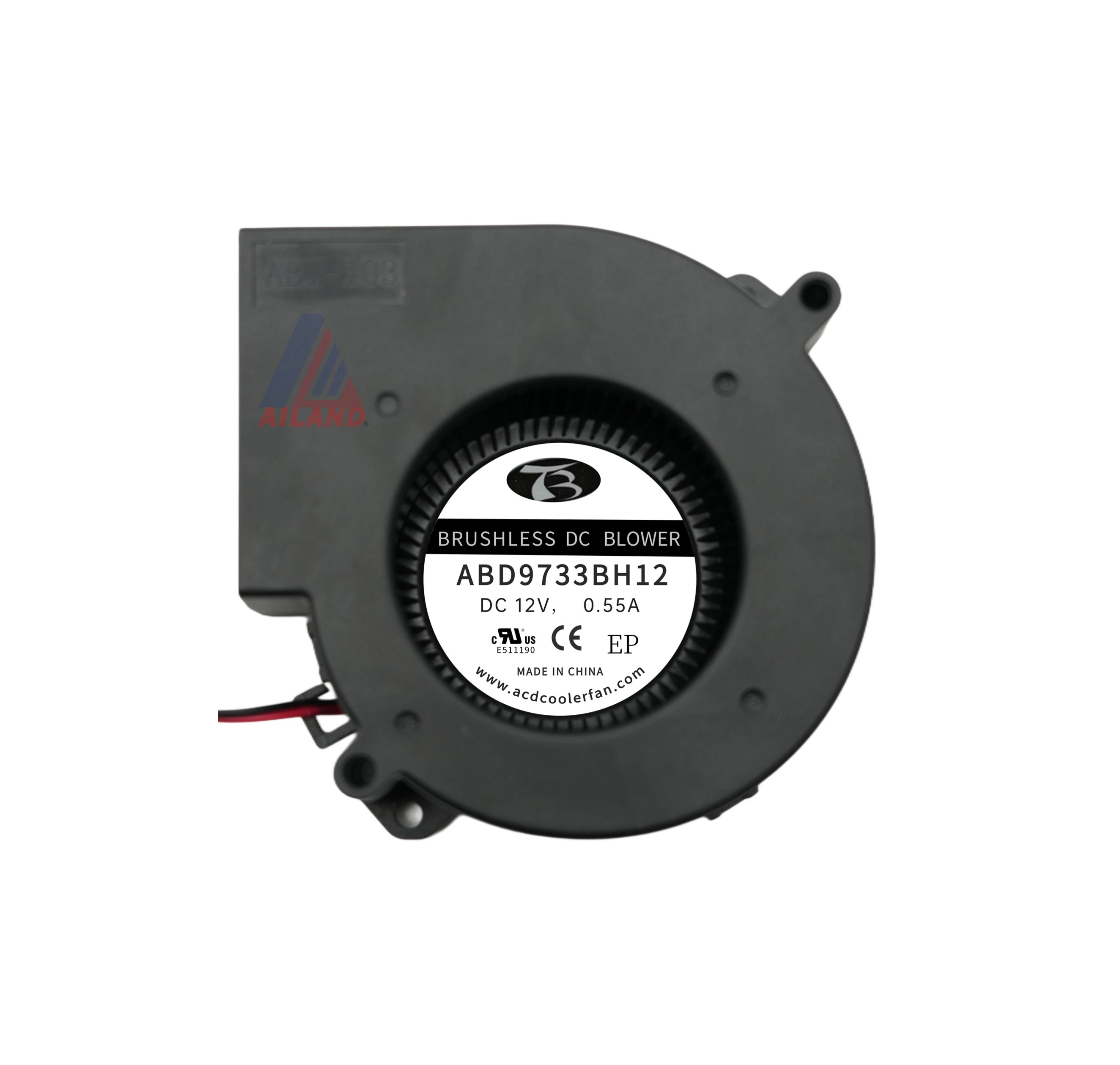

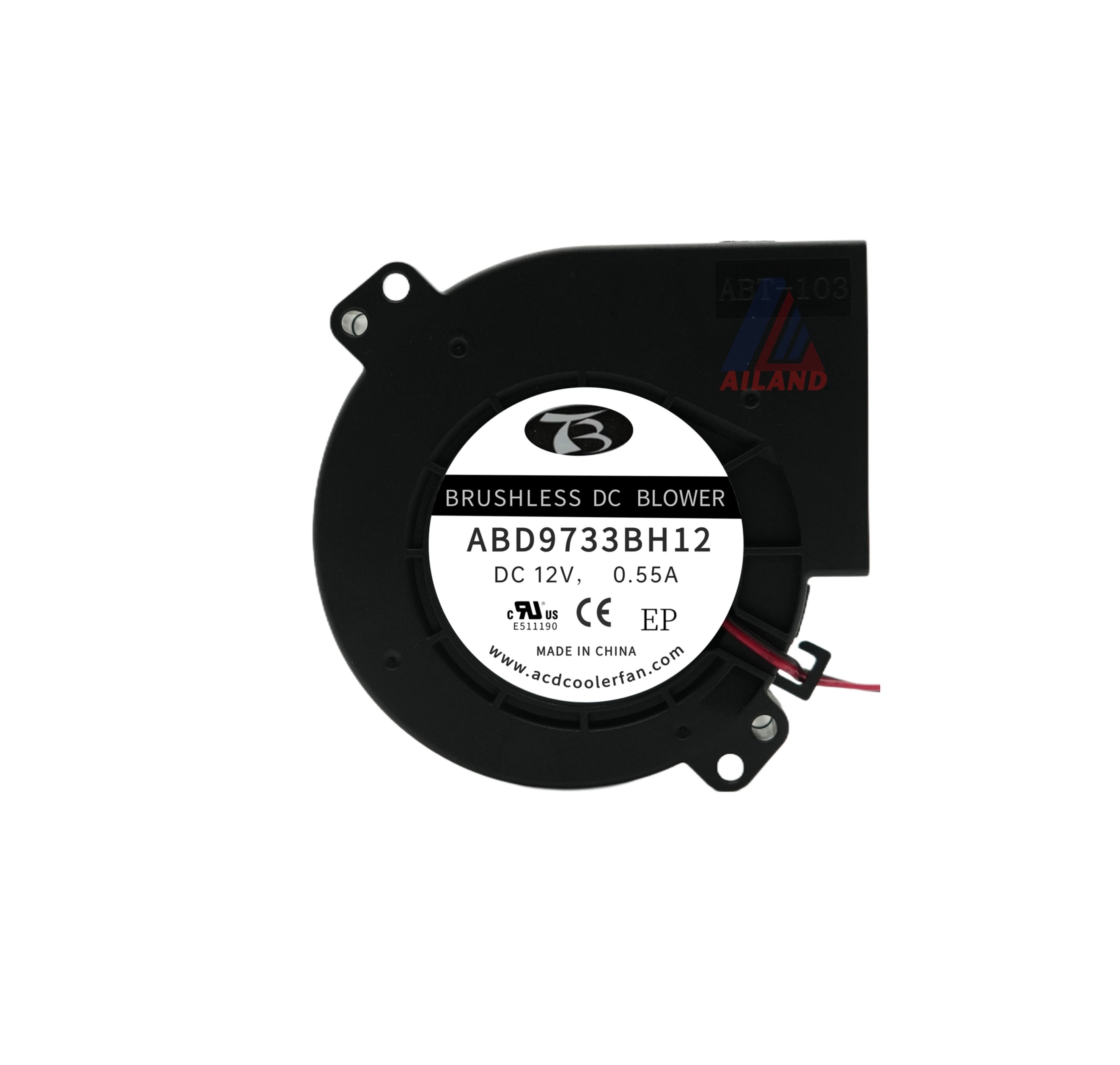

BL-9733	97x97x33mm	12V	0.55A	3300	27
BL-9733	97x95x33mm	12V	0.70	3600	30.50
BL-9733	97x95x33mm	24V	0.50	3600	30.50

Model	Size (mm)	Voltage (VDC)	Current (A)	Speed (RPM)	Airflow (CFM)

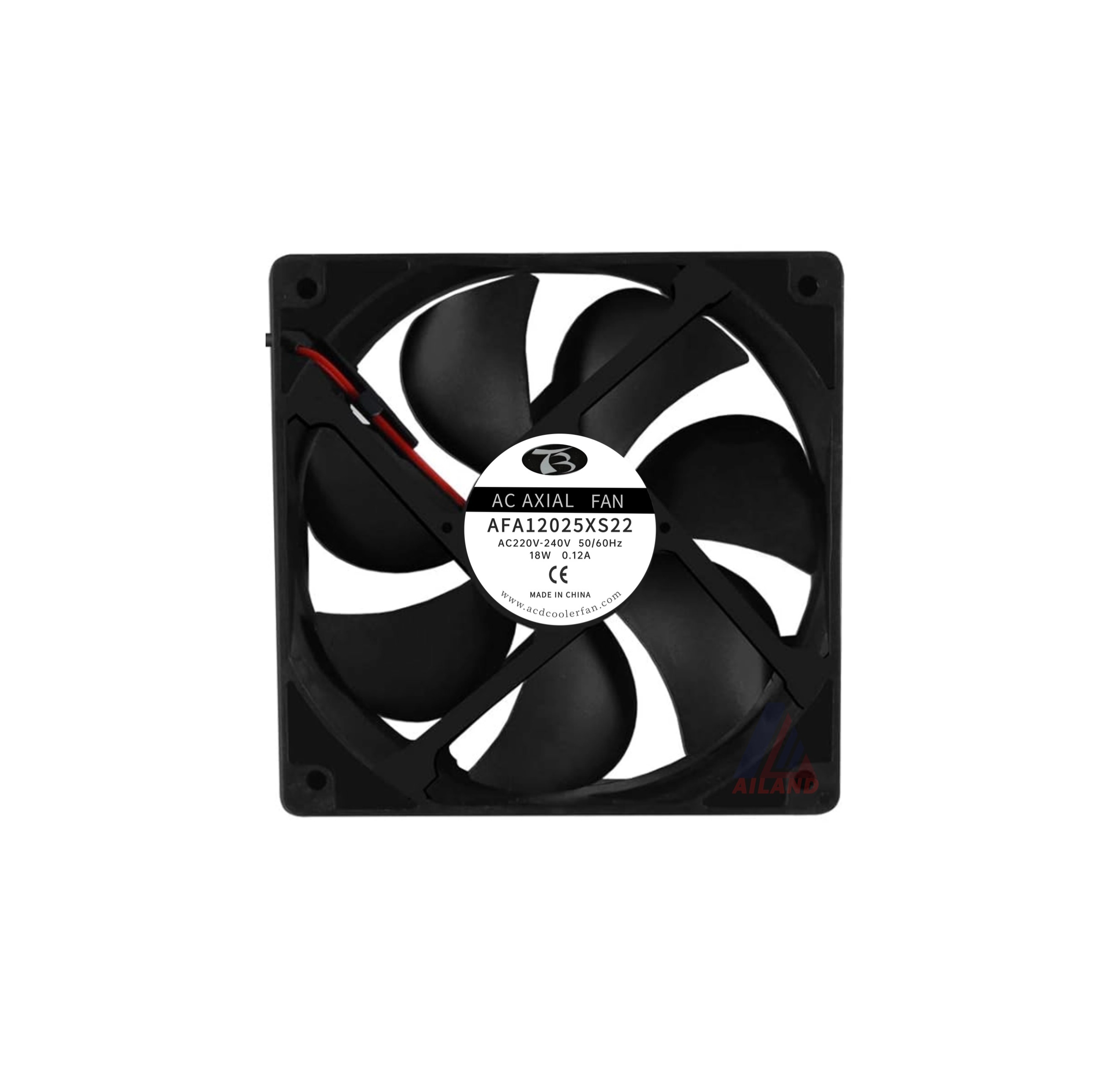

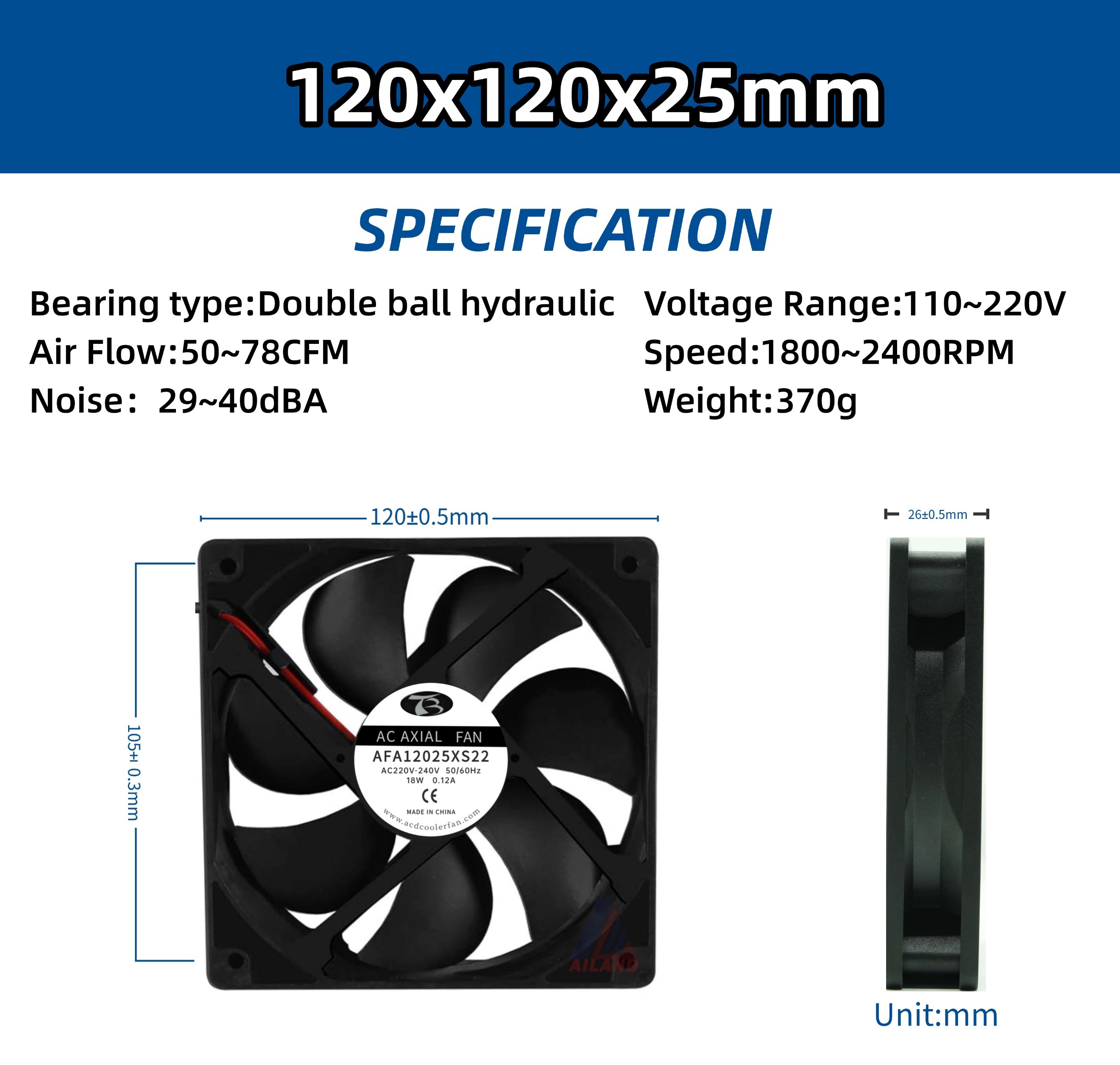

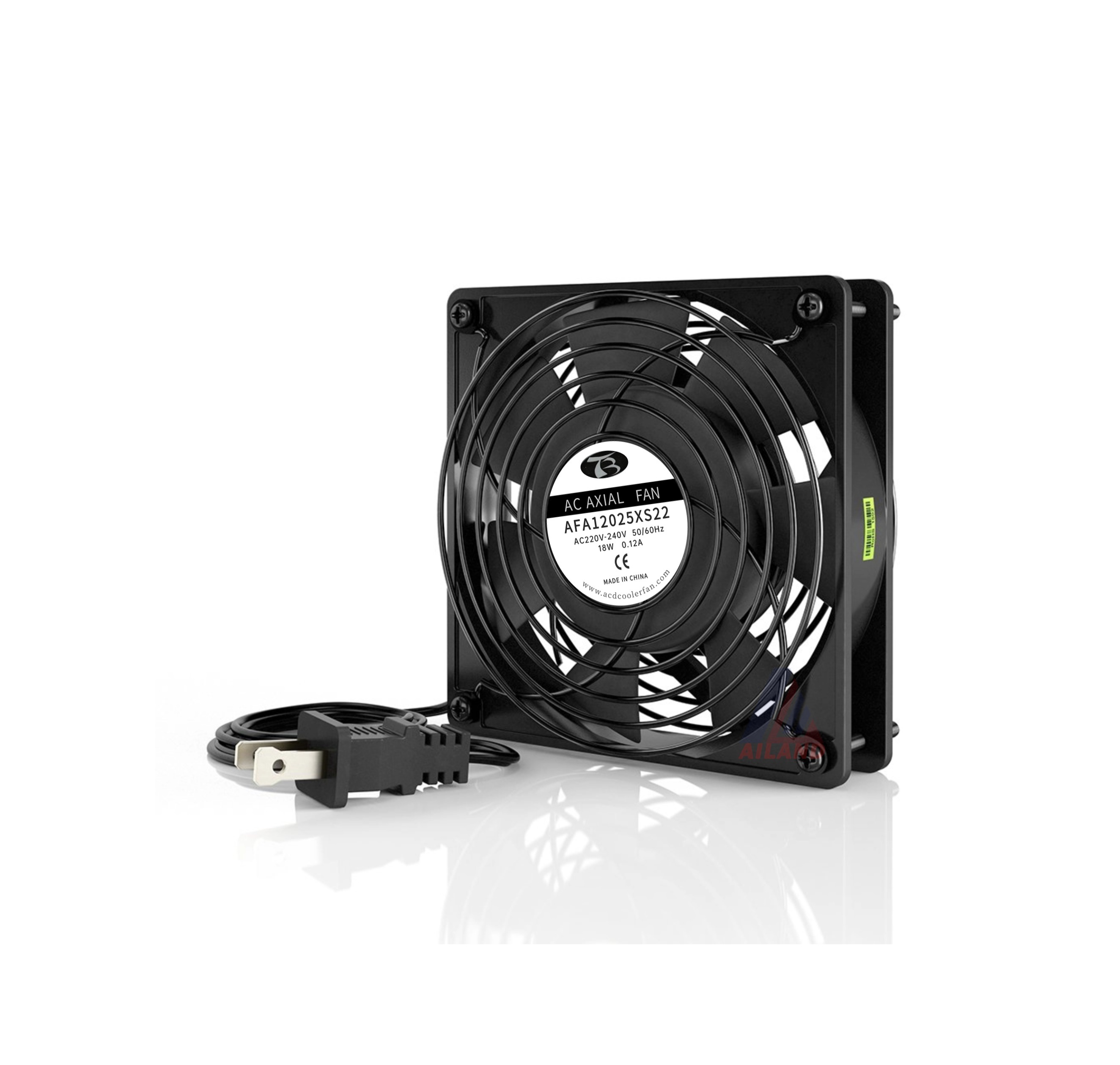

AC-12025	120x120x25mm	110V	0.19/0.18	2200/2400	66/78
AC-12025	120x120x25mm	220V	0.09/0.09	2200/2400	66/78
AC-12025	120x120x25mm	220V	0.07/0.07	2000/2200	58/58
AC-12025	120x120x25mm	110V	0.13/0.11	1800/1700	50/48

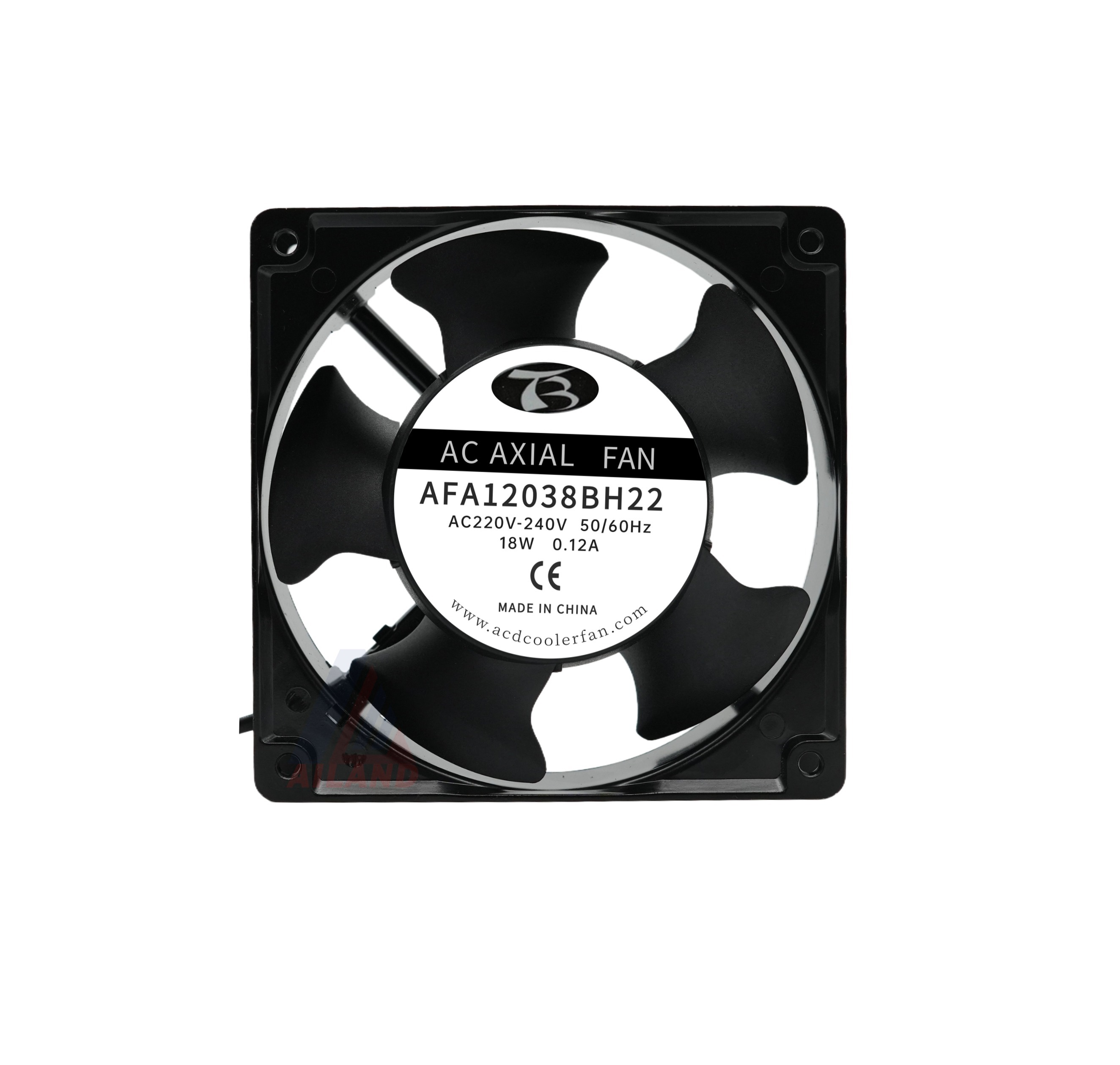

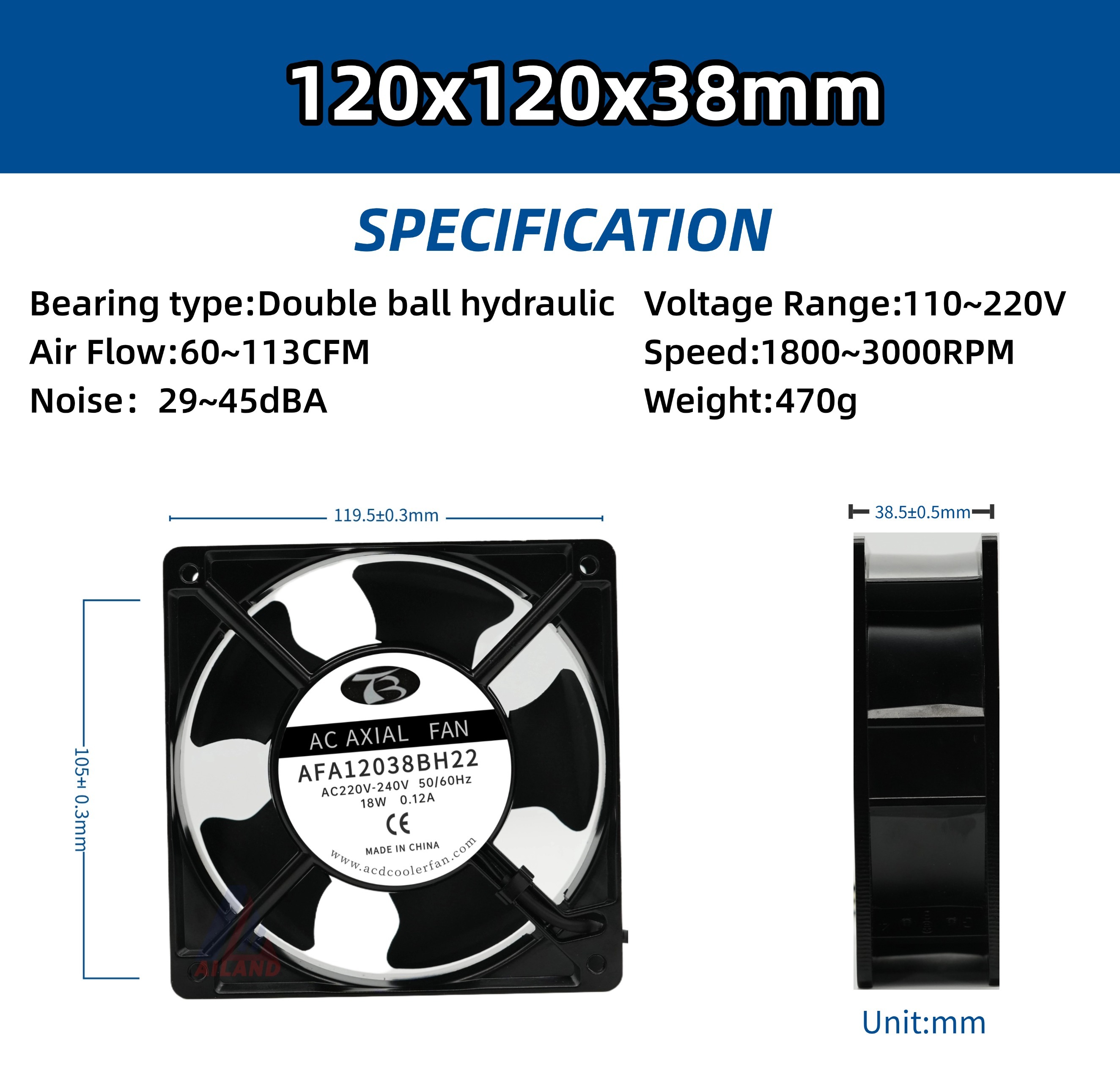

AC-12038	120x120x38mm	240V	0.12	2500	96
AC-12038	120x120x38mm	110V	0.22/0.18	2600/3000	91/113
AC-12038	120x120x38mm	220V	0.12/0.11	2600/3000	91/113
AC-12038	120x120x38mm	110V	0.17/0.15	2200/2400	70/75
AC-12038	120x120x38mm	220V	0.09/0.08	2200/2400	70/75

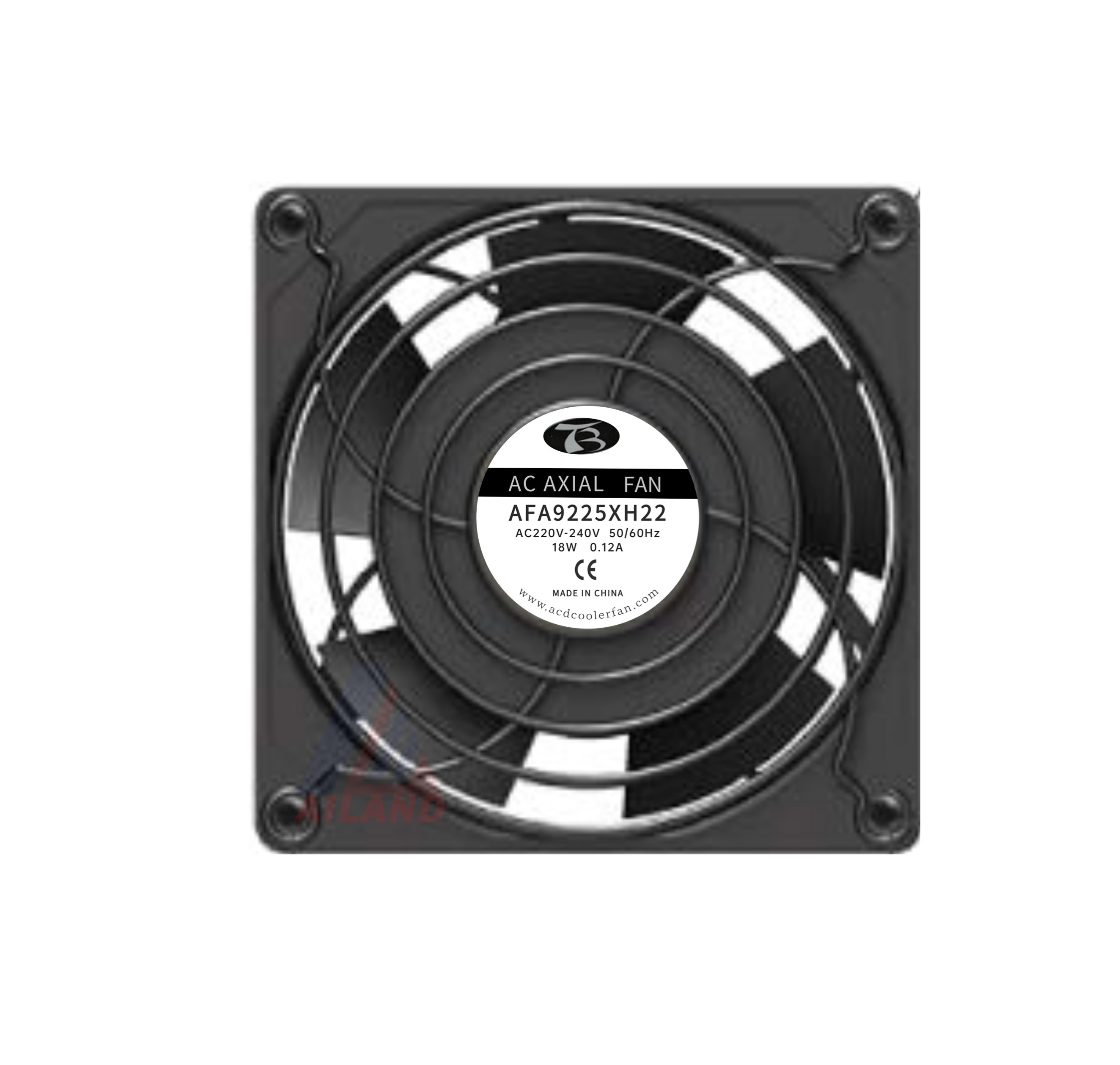

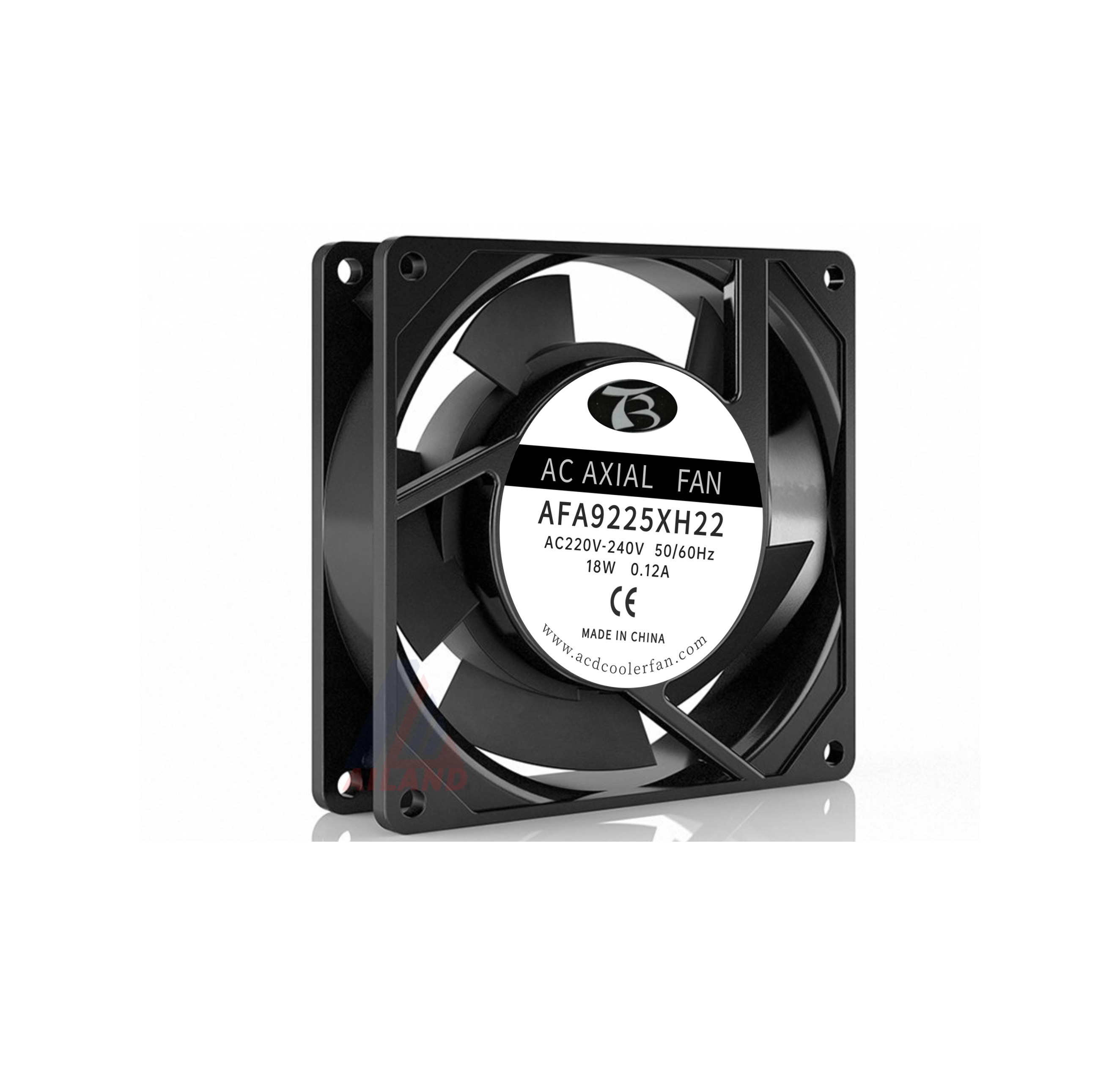

AC-9225	92x92x25mm	110V	0.12/0.10	2500/2900	30/37
AC-9225	92x92x25mm	220V	0.08/0.07	2500/2900	30/37

Exceptional Brushless DC Fan Performance from Our Quality
Materials

Engineered for demanding industrial applications since 2010

High Temperature Resistance up to 85℃
Our DC axial fans utilize UL94 V-0 grade flame retardant materials with:

√ 125℃ rated high-temp magnets
√ High temp. resistant wire coatings
√ Thermal overload protection

View High-Temp Series >

IP68 Protection for Harsh Environments
Industrial-grade DC blower fans feature:

√ Full dust ingress protection
√ Submersible up to 1.5m depth
√ Corrosion-resistant aluminum housing

Explore Rugged Fans >

70,000+ Hours Continuous Operation
Precision balanced rotor system ensures:

√ <1% vibration after 10,000hrs
√ ±5% airflow consistency
√ 10-year bearing warranty

View Durability Report >

Dual Ball Bearings for 5× Lifespan
Advanced bearing technology provides:

√ 80℃ max operating temperature
√ Automatic lubrication system
√ 360° dust-proof shield

Bearing Technology >

Ailand Certified DC Axial Fan Excellence

As a leading OEM DC axial cooling fan manufacturer, our brushless DC fans meet ISO 9001,
UL, and RoHS certifications, delivering industrial-grade reliability for global applications.

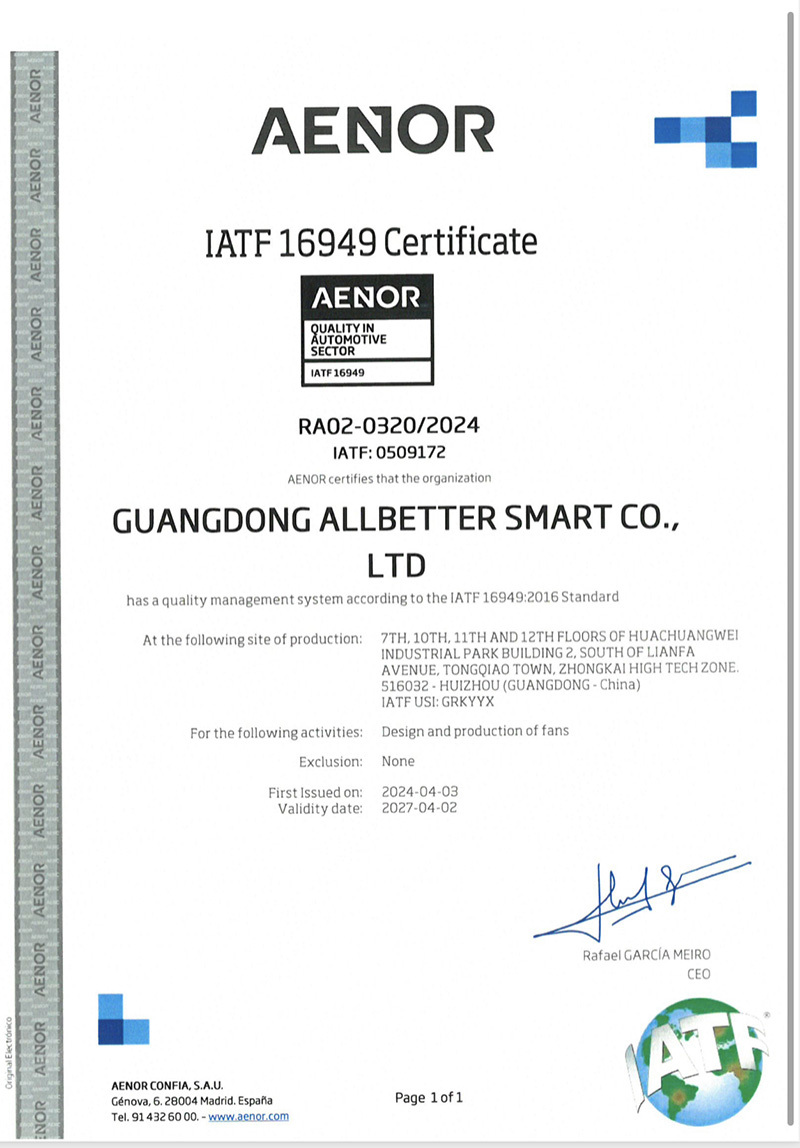

IATF16949 CERTIFICATE

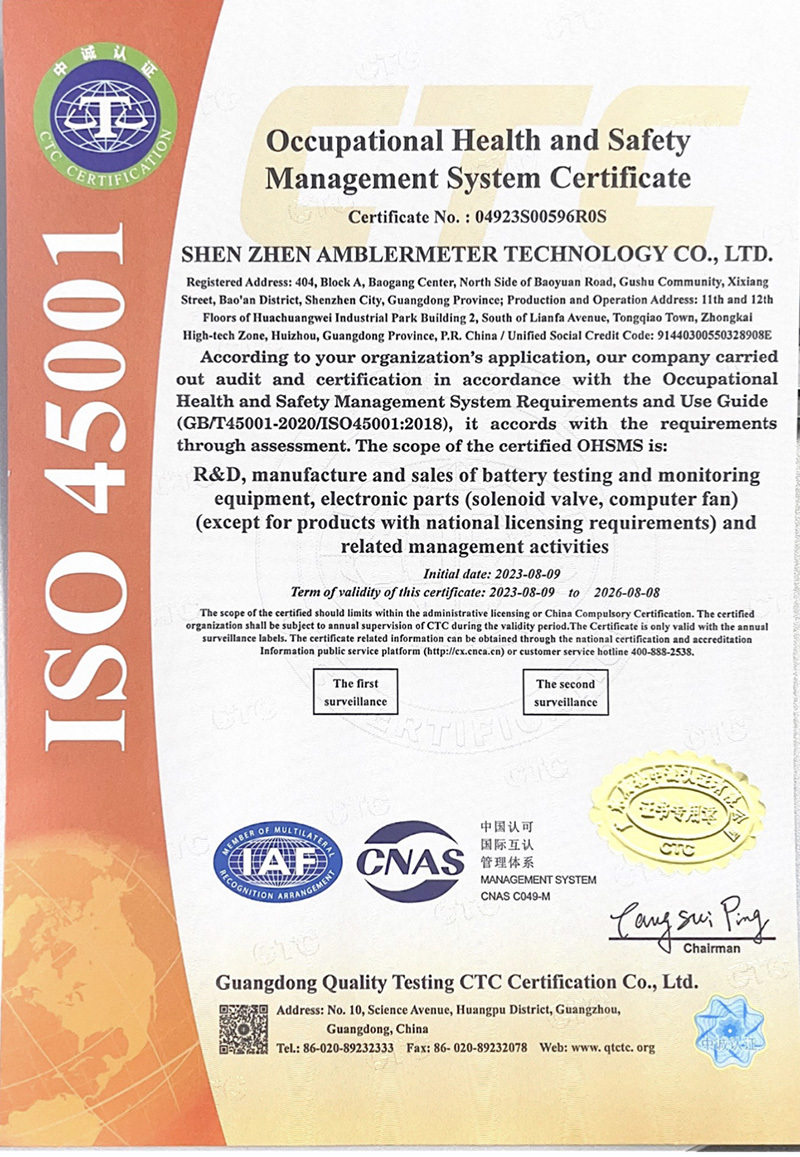

ISO45001 CERTIFICATE

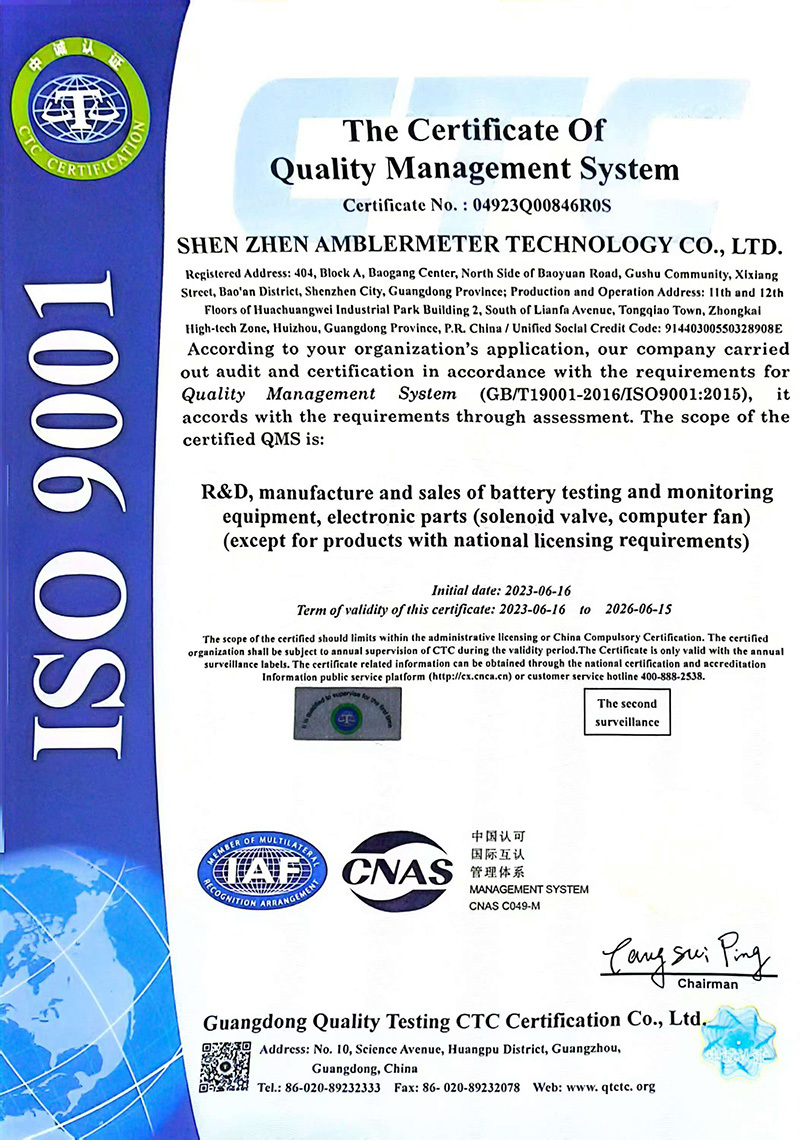

ISO9001 CERTIFICATE

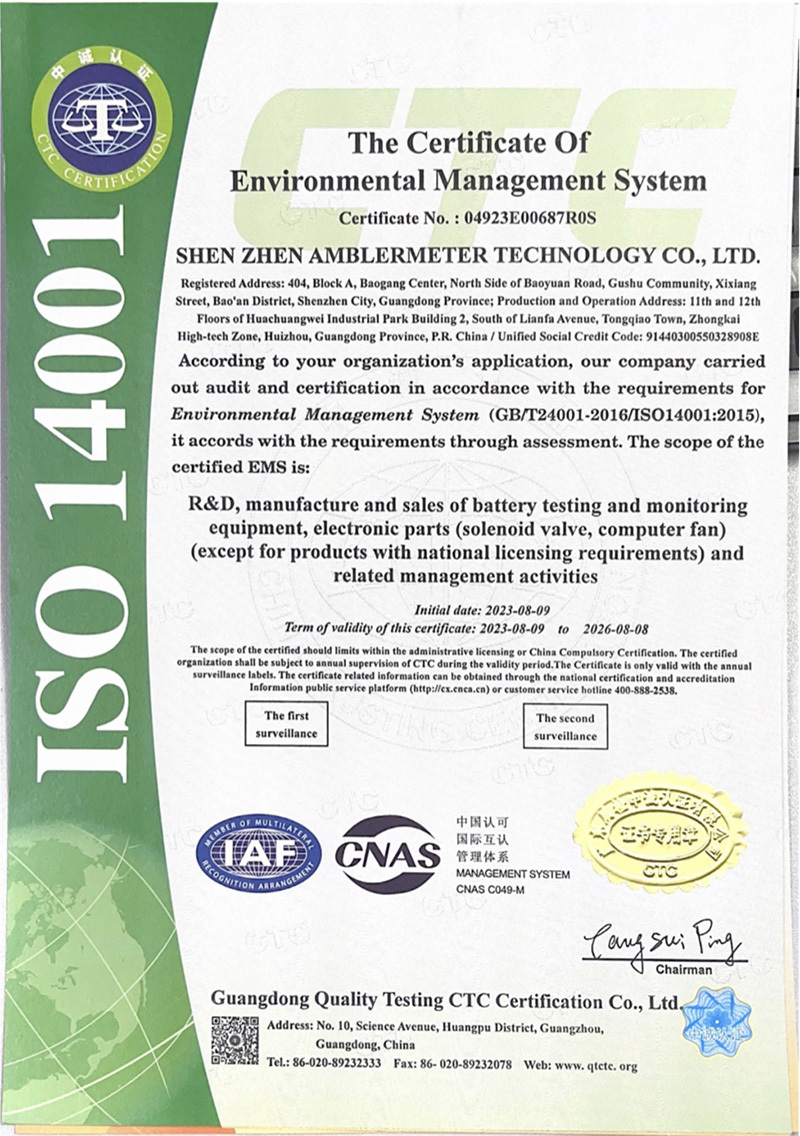

ISO14001 CERTIFICATE

TUV CERTIFICATE

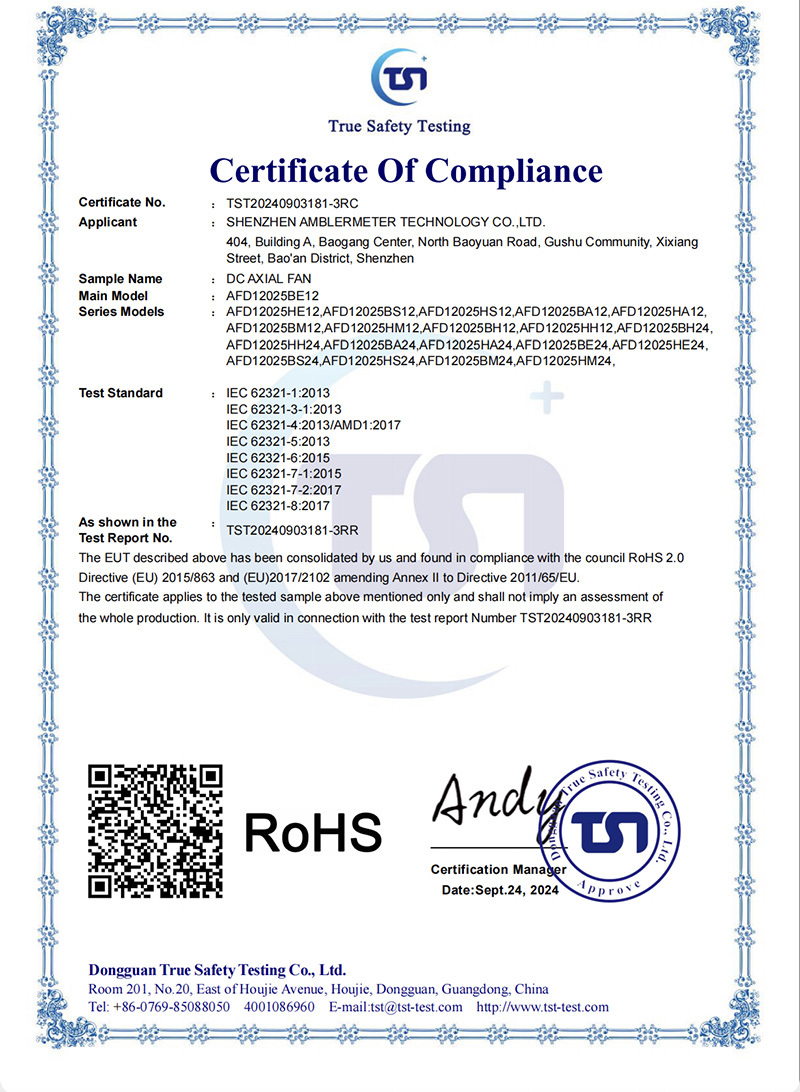

ROHS CERTIFICATE

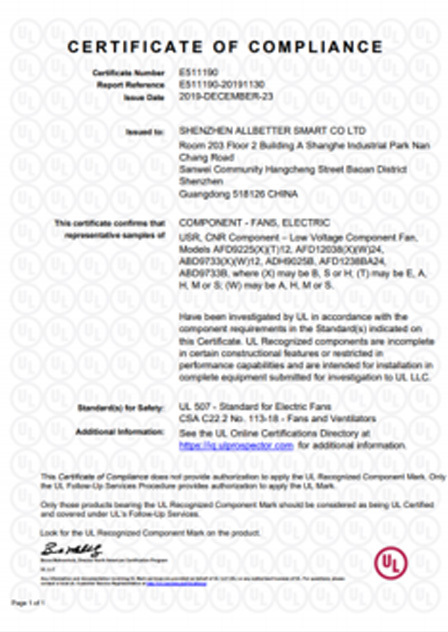

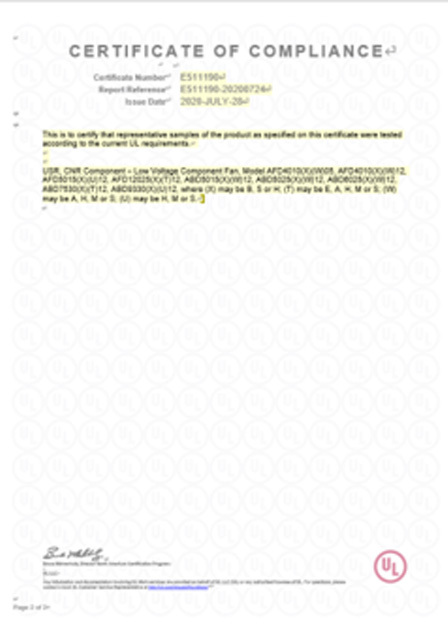

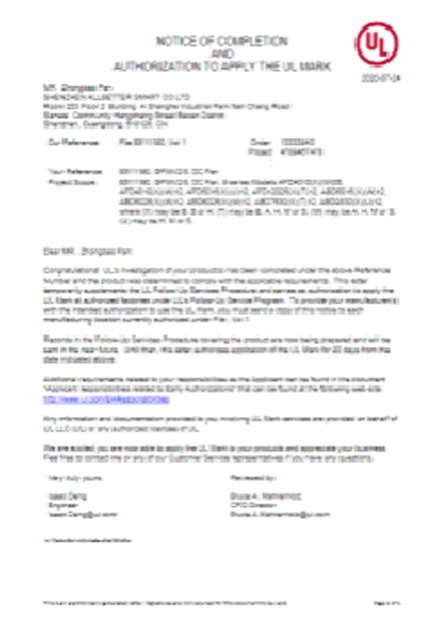

UL CERTIFICATE

QMS CERTIFICATE

Precision Cooling
Powered by Ailand
Innovation

Trusted by Global Leaders in Industrial Thermal Management

Claim Your Thermal Advantage >
